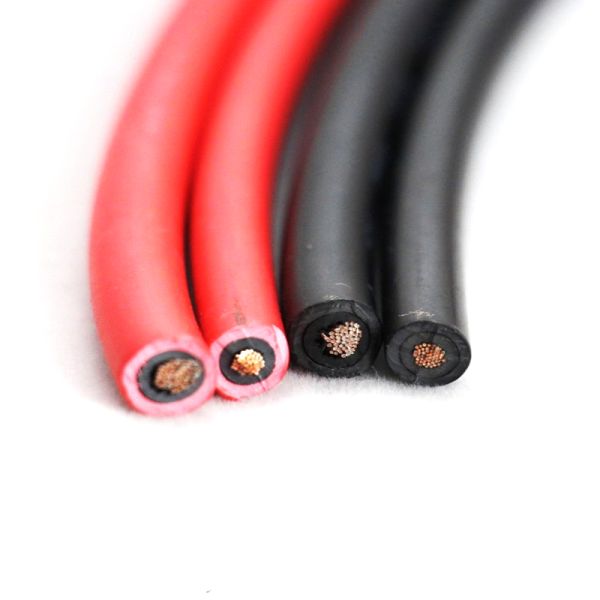

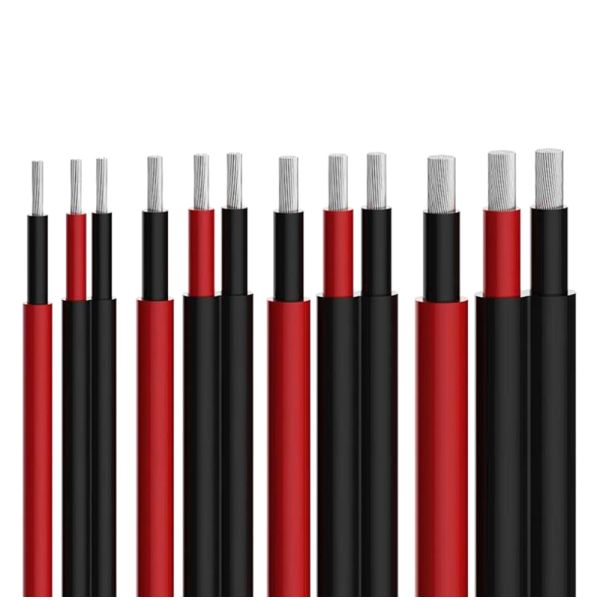

1500V DC Low Smoke Halogen Free Solar Photovoltaic Cable XLPE Insulation

Brand Name : Minfeng

Model Number : Solar Cable

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

MOQ : 100

Price : 0.1-5

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Free Sample : Avaliable

Rate Voltage : 1KV AC 1500V DC

Insulation : XLPO

Male End Type : CEE, CEE/16 3 Prong Schuko Plug

Trademark : Minfeng

Condutor : tinned copper

Contact Now

1x6 H1Z2Z2-K PV1-F XLPE Insulation Kabel PV Solar DC Cables
Product Overview
1500V DC Low Smoke Halogen Free Solar Photovoltaic Cable XLPE Insulation
PV1-F photovoltaic cable is a special cable used for solar photovoltaic modules in the system. It features weather resistance, high temperature resistance, and friction resistance with a long service life. The cable utilizes high-quality oxygen-free tinned copper conductors to ensure superior conductive effect, along with high-performance insulating materials and sheath materials after radiation cross-linking by a high-energy electron accelerator for reliable insulating and mechanical properties.
PV1-F Photovoltaic Cable Specifications
Model: PV1-F Outer diameter of conductor stranded: 2.60mm
Application standard: 2 PfG 1169/08.2007 Insulation nominal thickness: 0.8mm
Conductor material: IEC 60228, Category 5 stranded tinned copper wire Sheath Nominal Thickness: 0.9mm
Insulation material: Irradiation cross-linked low-smoke halogen-free flame-retardant polyolefin Outer diameter of finished wire: 6.1±0.1mm
Sheath material: Radiation cross-linked low-smoke halogen-free flame-retardant polyolefin Conductor resistance (20ºC): ≤5.09Ω/km
Nominal cross section: 4mm² 6mm² Working environment temperature ºC: -40~+90
Current carrying capacity: 5 high Higher conductor temperature: +120ºC
Number of cores: 1 Reference short-circuit allowable temperature: 200ºC 5S
Conductor structure: NO./mm 56/0.30 Rated voltage: DC: 1.8kv AC U./U: 0.6/1kv
Main features and advantages: PV1-F cable has superior photovoltaic UV, heat, cold, ultraviolet radiation resistance, ozone resistance, water resistance, acid resistance, salt corrosion resistance, along with superior wear resistance and weather capability.
1500V H1Z2Z2-K Photovoltaic Cable
1500V DC Low Smoke Halogen Free Solar Photovoltaic Cable XLPE Insulation
H1Z2Z2-K, 1500V DC photovoltaic cable is used in the nominal 1.5KV DC voltage photovoltaic power generation system between the conductor and the conductor, and the conductor and the ground. It is an upgraded product on the basis of the original PV1-F-06/1KV photovoltaic cable with better anti-aging effect.
Conductor section 0.5mm²-300mm² (other specifications can be customized) Ambient temperature -40℃ to +90℃; -40 to +194
Conductor Tinned copper stranded wire conforms to EN60228.5 category soft conductor Maximum short-circuit temperature 280°C, +536°F
Insulation Low-smoke halogen-free radiation crosslinked polyolefin Bending radius Fixed installation>4x; Mobile installation>5x;
Sheath Low-smoke halogen-free radiation crosslinked polyolefin Material characteristics/standards Fire performance: EN 60332-1-2:2004; Zero smoke emission: IEC61034: minimum 60% light transmittance
Rated voltage DC 1.5/1.5kV AC 1.0KV Low fire load DIN 51900
Test voltage 6500V, 50HZ, 5 minutes Certification EN50618:2014
Temperature class -45℃ to 125℃; -45 to +257 Application standard EN50618:2014
Single Core PV1-F Solar Cable Technical Parameters
Cross section (mm²) Conductor Construction (n/m) Conductor OD (mm) Cable Outer (mm) Resistance Max. (Ω/km) Current Carrying Capacity (A) Insulation Min.Wall Thickness (mm) Sheath Min.Wall Thickness (mm)
1x1.5mm² solar cable 30/0.25 1.58 4.90 13.30 30 0.67 0.73
1x2.5mm² pv cable 50/0.25 2.02 5.45 7.89 41 0.67 0.73
1x4mm² solar pv cable 56/0.3 2.60 6.10 4.75 50 0.67 0.73
1x6mm² pv solar cable 84/0.3 3.42 7.20 3.39 70 0.8 0.80
1x10mm² solar panel cables 142/0.3 4.56 9.00 1.95 98 0.9 0.90
1x16mm² solar system wiring 228/0.3 5.60 10.20 1.24 132 1.00 0.90
1x25mm² photovoltaic cable 361/0.3 6.95 12.00 0.795 176 1.19 0.92
1x35mm² photovoltaic cable 276/0.40 8.74 13.8 218 1.20 1.00
Twin Core PV1-F Solar Cable Technical Parameters
Cross section mm² Conductor Construction (n/mm) Conductor OD (mm) Cable Outer (mm) Resistance Max. (Ω/km) Current Carrying Capacity (A)
2 x 1.5mm² twin core solar cable 30/0.25 1.58 8.3 ± 0.2 13.30 30
2 x 2.5mm² two core solar pv cable 50/0.25 2.02 9.2 ± 0.2 7.98 41
2 x 4mm² dual core solar cable 56/0.3 2.60 12.0 ± 0.2 4.75 50
2 x 6mm² pv cable wire 84/0.3 3.42 13.5 ± 0.2 3.39 70
2 x 10mm² solar cable wire 142/0.3 4.56 17.6 ± 0.2 1.95 98
2 x 16mm² solar wire 228/0.3 5.60 19.8 ± 0.2 1.24 132
Additional Information: We have other models and sizes available. Please contact us if you need specific requirements. Thank you.
