TUV Approval PV Solar Power Cables With Tinned Copper Conductor LSZH Insulation

Name: TUV Approval PV Solar Power Cables With Tinned Copper Conductor LSZH Insulation
Brand: Minfeng
Price: 0.1 USD

Buy cheap TUV Approval PV Solar Power Cables With Tinned Copper Conductor LSZH Insulation product

Brand Name : Minfeng

Model Number : Solar Cable

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

MOQ : 100

Price : 0.1-5

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Free Sample : Avaliable

Rate Voltage : 1KV AC 1500V DC

Insulation : XLPO

Male End Type : CEE, CEE/16 3 Prong Schuko Plug

Trademark : Minfeng

Condutor : tinned copper

Contact Now

TUV Approval Red Black Battery DC PV Solar Power Cable Wire for Solar Panel

Product Overview

Professional manufacturer offering high-quality PV electric wire at reasonable prices. These single core cables are specifically designed for photovoltaic and solar system applications, featuring LSZH insulated and sheathed flame retardant properties with halogen-free and low smoke characteristics.

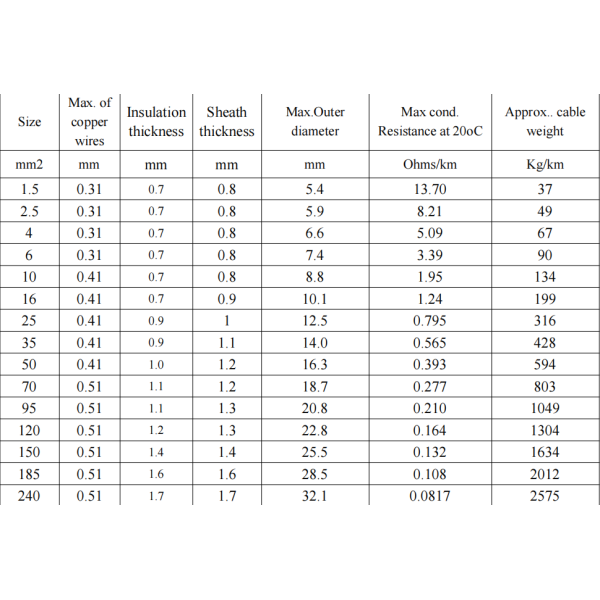

Technical Specifications

Type	Insulated
Model Number	H1Z2Z2-K
Rated Voltage	600V AC / 1.5kV DC
Diameter/AWG	2 AWG, 4 AWG, 6 AWG
Size Range	1.5-240 mm²
Conductor Material	Tinned Copper Conductor (Plain annealed copper conductor class 5)
Insulation Material	XLPE Crosslinked LSZH
Number of Cores	1
Standard	EN 60228
Operating Temperature	-40°C - 90°C on the conductor
Overload Temperature	120°C on the conductor
Short Circuit Temperature	250°C on the conductor (max duration 5 seconds)
Minimum Installation Temperature	-25°C
Minimum Bending Radius	4 x outer diameter of the cable
Expected Lifetime	>25 years
Insulation Color	Black
Sheath Color	Black/Red
Place of Origin	Hebei, China
Brand Name	Minfeng

Key Features

TUV approved for quality assurance
Flexible tin plated copper class 5 conductor
Crosslinked LSZH insulation and jacket
Flame retardant, halogen free and low smoke
High resistance against ozone, UV rays, oils, moisture and weather inclemencies
Lifetime testing 20,000 hours at 120°C
Suitable for fixed installation in various environments

Applications

Cable suitable for the interconnection of the various elements of photovoltaic systems. Suitable for fixed installation outside and inside without protection or inside pipes, ducts or similar closed systems. Thanks to the use of materials with temperature-index of 120°C (determined according to Norm IEC 60216), these cables are suitable for use at an ambient temperature up to 90°C (120°C overload).

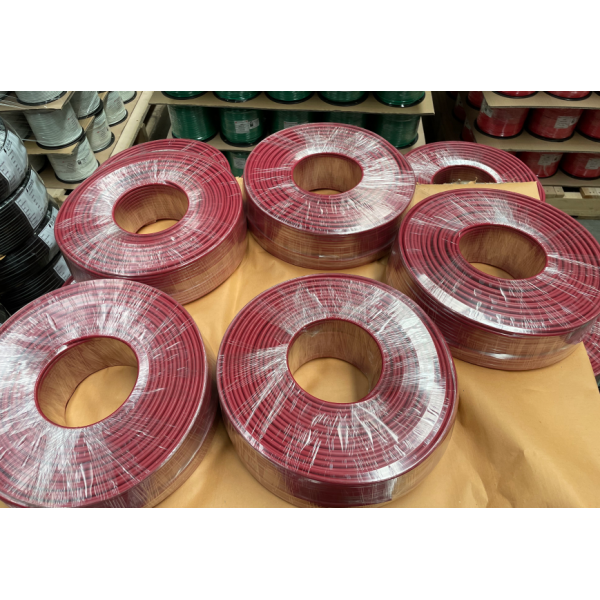

Product Images

TUV Approval PV Solar Power Cables With Tinned Copper Conductor LSZH Insulation
