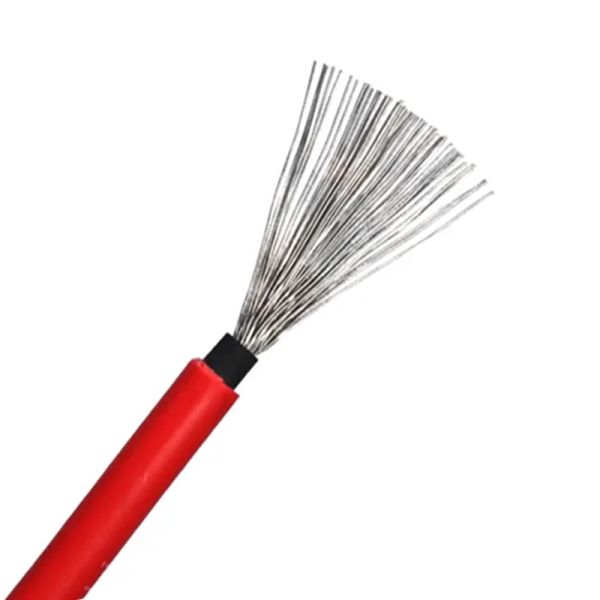

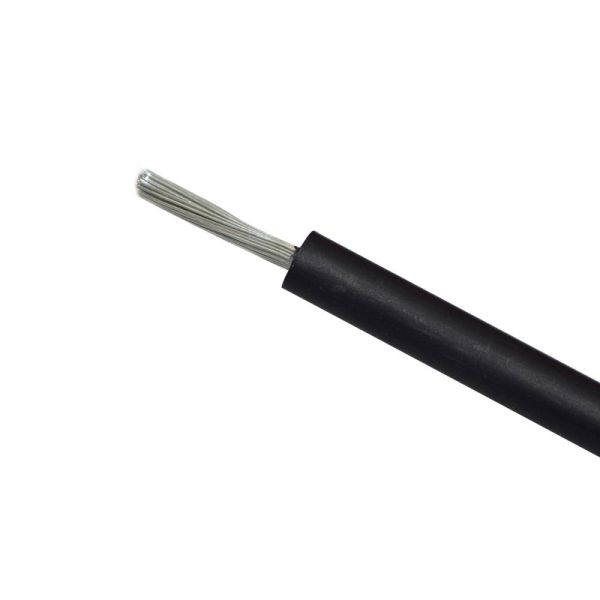

6sqmm 6mm² 1000V 1500V One Single Core DC AC PV Panel Cable
PV1-F-06/1KV Photovoltaic Cable
PV1-F photovoltaic cable is a special cable used for solar photovoltaic modules in the system. It features weather resistance, high temperature resistance, and friction resistance with a long service life. The cable utilizes high-quality oxygen-free tinned copper conductors to ensure superior conductive effects, along with high-performance insulating materials and sheath materials that have been radiation cross-linked by a high-energy electron accelerator, providing reliable insulating and mechanical properties.
1500V Photovoltaic Cable H1Z2Z2-K
H1Z2Z2-K, 1500V DC photovoltaic cable is used in nominal 1.5KV DC voltage photovoltaic power generation systems between conductors and between conductors and ground. It represents an upgraded product based on the original PV1-F-06/1KV photovoltaic cable with enhanced anti-aging effects.
1500V photovoltaic cable H1Z2Z2-K
Technical Specifications
- Conductor section: 0.5mm²-300mm² (other specifications can be customized)
- Conductor: Tinned copper stranded wire conforms to EN60228.5 category soft conductor
- Insulation: Low-smoke halogen-free radiation cross-linked polyolefin environmentally friendly insulation material
- Sheath material: Low-smoke halogen-free radiation cross-linked polyolefin environmentally friendly UV-resistant sheath material
- Insulation color: Black (other colors can be customized)
- Sheath color: Black/red (other colors can be customized)
- Rated voltage: DC 1.5/1.5kV AC 1.0KV
- Test voltage: 6500V, 50HZ, 5 minutes
- Temperature class: -45℃ to 125℃; -45 to +257
- Ambient temperature: -40℃ to +90℃; -40 to +194
- Service life: 25 years (through TUV/UL)
- Maximum short-circuit temperature: 280°C, +536°F
- Bending radius: Fixed installation >4x; Mobile installation >5x
- Fire performance: EN 60332-1-2:2004
- Zero smoke emission: IEC61034: minimum 60% light transmittance
- Low fire load: DIN 51900
- Certification: EN50618:2014
- Application standard: EN50618:2014

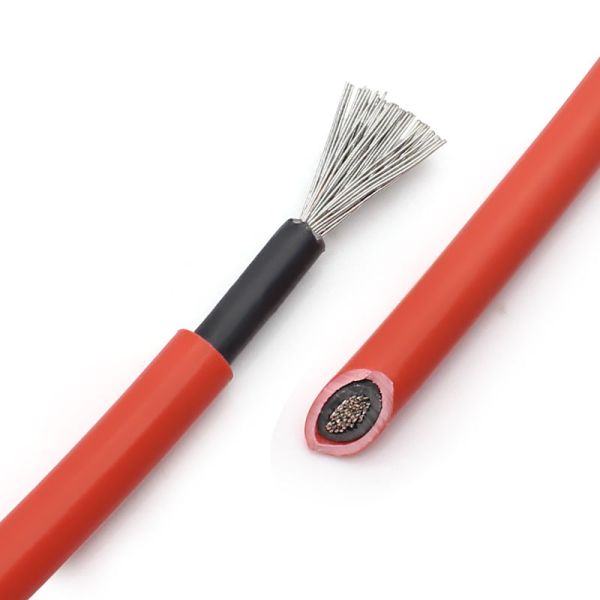

PV1-F Structure
PV1-F Application Standard & Construction
- Application standard: 2 PfG 1169/08.2007
- Conductor: Stranded tinned copper wire conforming to DIN VDE 0295 and IEC 60228 Class 5
- Insulation: Irradiation cross-linked low-smoke halogen-free flame-retardant polyolefin
- Sheath: Irradiation cross-linked low-smoke halogen-free flame-retardant polyolefin
- Insulation nominal thickness: 0.8mm
- Nominal thickness of sheath: 0.9mm
- Nominal cross section: 4mm²
- Outer diameter of finished wire: 6.1±0.1mm
- Specification: 1*1.5～1*70mm²; 2*1.5～2*35mm² AWG American standard and other specifications can be consulted and customized
PV1-F Electrical Performance
- Rated voltage U0/U: 0.6/1 kV AC; 0.9/1.5 kV DC
- Maximum allowable AC voltage: 1.8 kV DC (conductor/conductor, no grounding system, when the circuit is unloaded)
- Insulation resistance: 1000 MΩ-km
- Conductor resistance (20℃): ≤5.09Ω/km
- Sheath surface resistance: The surface resistance of the finished cable sheath should not be less than 10⁹Ω
PV1-F Thermal Performance
- Indoor temperature: -40℃ ~ +90℃
- Conductor temperature: IEC / EN 60216-1 120℃ (20000h)
- Short circuit temperature: 200℃/5 s
- Heat resistance test: EN 60216-2 (temperature +120°C)
- High temperature pressure test: EN 60811-3-1
- Heat resistance: EN60068-2-78, 85% humidity
PV1-F Mechanical Behavior
- Minimum bending radius: 4*OD (fixed), 5*OD (flexing)
- Osmotic: 2 PfG 1169 / 08.2007 appendix F
- Slot propagation: 2 PfG 1169/08.2007 Appendix G
- Tensile strength and elongation of insulation and sheath: EN 60811
- Life expectancy: 25 years
Technical Data Table
| Nominal cross-sectional area (mm²) |
1.5 |
2.5 |
4.0 |
6.0 |
10 |
16 |
25 |
35 |
| Conductor type |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
| Nominal conductor diameter (mm) |
1.58 |
2.04 |
2.59 |
3.17 |
4.07 |
5.22 |
6.51 |
7.71 |
| Nominal insulation thickness (mm) |
0.7 |
0.7 |
0.7 |
0.7 |
0.7 |
0.7 |
0.9 |
0.9 |
| Nominal sheath thickness (mm) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.9 |
1.0 |
1.1 |
| Average outer diameter upper limit (mm) |
5.4 |
5.9 |
6.6 |
7.4 |
8.8 |
10.1 |
12.5 |
14.0 |
| Nominal weight (kg/km) |
52 |
67 |
87 |
113 |
178 |
254 |
363 |
473 |
Application & Features
Application: PV1-F cable for indoor photovoltaic solar installation of electric equipment line.
Main features and advantages: PV1-F cable features superior photovoltaic UV, heat, cold, ultraviolet radiation resistance, ozone resistance, water resistance, acid resistance, salt corrosion resistance, along with superior wear resistance and weather capability.
