Bare Conductor Copper Clad Steel Wire Cable CCS Stranded Conductor for Overhead Electrical Transmission ASTM B228 Standard with Copper and Steel

Name: Bare Conductor Copper Clad Steel Wire Cable CCS Stranded Conductor for Overhead Electrical Transmission ASTM B228 Standard with Copper and Steel
Brand: Minfeng
Price: 0.1 USD

Buy cheap Bare Conductor Copper Clad Steel Wire Cable CCS Stranded Conductor for Overhead Electrical Transmission ASTM B228 Standard with Copper and Steel product

Brand Name : Minfeng

Place of Origin : Hebei, China

Standard : ASTM-B228

Model Number : CCS

Free Sample : Avaliable

Delivery Time : 5-8 Days

Insulation : PVC/PE

Payment Terms : L/C,T/T

MOQ : 100m

Certification : ISO,CE,IEC,TUV,KEMA

Price : 0.1-5

Supply Ability : 100KM/Week

Cable Mark : Ink printing or Embossing

Packaging Details : Wooden Drum

Conductor : Copper and Steel

Contact Now

Bare Conductor Copper Clad Steel Wire Cable for Overhead Electrical Transmission ASTM B228 Standard CCS Stranded

Product Overview

Rated Voltage 450/750V

Size 50.32-12610mm²

Conductor Material Copper and Steel

Insulation Material PVC/PE

Application Industrial

Type Low Voltage

Standard ASTM-B228

Brand Name Minfeng

Place of Origin Hebei, China

Applications

CCS wire and CCS stranded conductor is used in overhead electrical transmission and distribution for grounding electrical systems where high conductivity and flexibility is required. Suitable for numerous other applications. This catalogue shows the most common sizes of wire but other sizes, to any other standards or customer specification can also be supplied.

Bare Conductor Copper Clad Steel Wire Cable CCS Stranded Conductor for Overhead Electrical Transmission ASTM B228 Standard with Copper and Steel

Construction

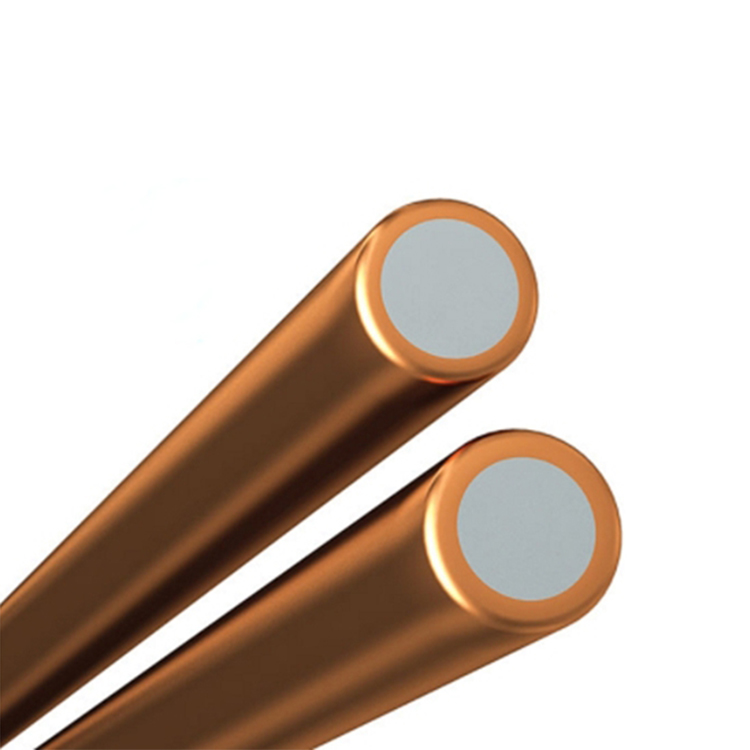

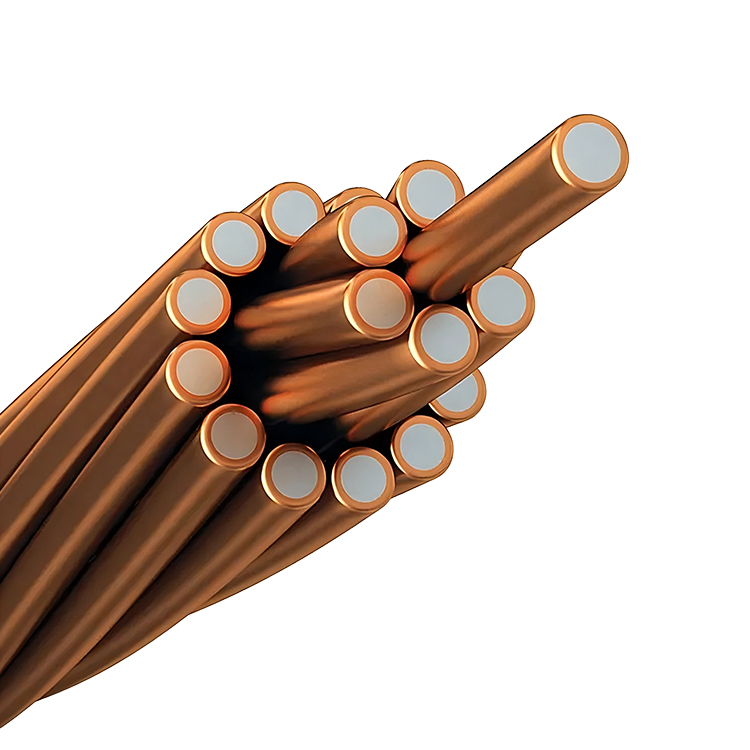

CCS stranded conductor is composed of copper clad steel. Solid or concentric-lay-stranded conductors of copper-clad steel wires. A high strength steel wire with a 25% thick cross-section ratio of copper cladding creating a high electrical conductivity, highly corrosive resistant and a thermal stability for high temperature operation and all with a lighter weight.

Specifications and Standards

CCS wire meets or exceeds ASTM B228 standard requirements.

CCS Wire Specifications - ASTM B228

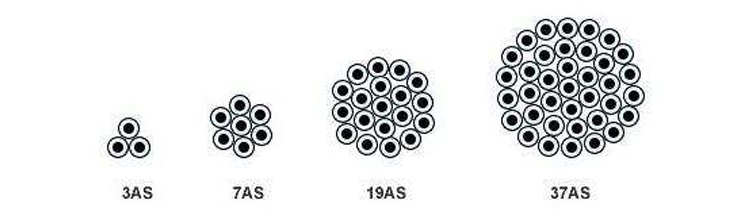

No./size of strands	Structure No./mm	Cross-section mm²	Rated strength kN	DC Resistance Ω/km	Approx. weight kg/km
3 No. 5	3/4.62	50.32	37.3	0.881	413.41
3 No.6	3/4.11	39.80	30.9	1.111	327.84
3 No. 7	3/3.67	31.65	25.5	1.401	259.39
3 No. 8	3/3.26	25.10	21.1	1.766	206.11
3 No. 9	3/2.91	19.90	17.1	2.227	163.55
3 No. 10	3/2.59	15.78	14.3	2.808	129.62
3 No. 12	3/2.05	9.90	7.6	4.465	81.551
7 No. 4	7/5.19	148.10	99.3	0.300	1218.7
7 No.5	7/4.62	117.40	82.4	0.378	966.41
7 No.6	7/4.11	93.10	68.2	0.477	766.25
7 No. 7	7/3.67	73.87	56.4	0.601	608.06
7 No.8	7/3.26	58.56	46.6	0.759	482.02
7 No. 9	7/2.91	46.44	38.4	0.956	382.16
7 No. 10	7/2.59	36.83	30.9	1.206	303.14
19 No. 5	19/4.62	318.70	223.50	0.140	2634
19 No. 6	19/4.11	252.70	185.10	0.176	2087.9
19 No. 7	19/3.67	200.40	153.00	0.222	1656.3
19 No. 8	19/3.26	158.90	126.30	0.281	1313.6
19 No. 9	19/2.91	12610	104.10	0.354	1041.7
