TACSR Cable Bare Conductor with 150℃ Working Temperature Aluminum Alloy Material for Low Voltage Applications

  • 1
  • 2
  • 3

Model Name : TACSR Cable

MOQ : 100m

Port : shanghai

Standard : IEC,ASTM , other international standard.

Model Number : TACSR

Certification : ISO,CE,IEC,TUV,KEMA

Supply Ability : 100KM/Week

Type : Low Voltage

Price : 0.1-5

Payment Terms : L/C,T/T

Conductormaterial : Aluminum alloy

Delivery Time : 5-8 Days

Working Temperature : 150℃

Brand Name : Minfeng

Place of Origin : Hebei, China

Packaging Details : Wooden Drum

Contact Now

TACSR (Thermal Resistance Aluminium Alloy Conductor Steel Reinforced) Cable Bare Conductor
Product Overview
TACSR stands for Thermal-Resistant Aluminum Alloy Conductor Steel Reinforced. It's a high-performance wire designed to operate effectively at elevated temperatures with enhanced current carrying capacity.
Key Specifications
Size 58-680mm²
Conductor Material Aluminum alloy
Insulation Material EPR
Working Temperature 150℃
Application Industrial
Type Low Voltage
Place of Origin Hebei, China
Model Number TACSR
Brand Name Minfeng
Standard IEC, ASTM & other international standards
Applications
TACSR conductors are designed for high-capacity power transmission applications where elevated operating temperatures are encountered. Stable at elevated temperatures, TACSR can be safely operated continuously above 150℃, enabling increased current capacity through the conductor.

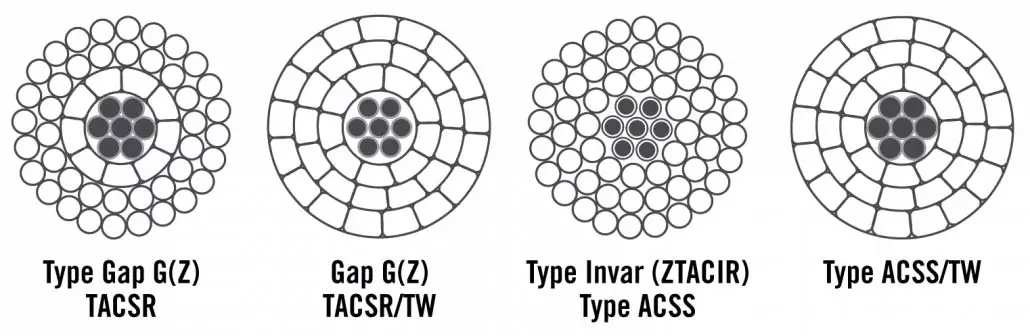

Construction
  • Inner Core Wire: The center wire or wires are of galvanized steel with outer layer(s) of thermal-resistant aluminum-alloy
  • Material Composition: TACSR conductors are similar in construction to conventional ACSR conductors but use Hard Drawn Aluminum wires of Heat Resistant Aluminum Alloy (TAL) instead of EC Grade Aluminum wires
TACSR Cable Bare Conductor with 150℃ Working Temperature Aluminum Alloy Material for Low Voltage Applications
Key Features
  • Stable at elevated temperatures - safe continuous operation above 150℃
  • High current carrying capacity
  • Excellent mechanical properties
  • Zirconium doped aluminum alloy maintains electrical and mechanical properties at elevated temperatures
  • Cost-effective solution for refurbishing existing lines with enhanced capacity
Technical Specifications
Nominal Cross Sectional Area No/Dia of Wire TAL Wire No/Dia of Wire AS Wire Cross Sectional Area TAL Wire Total Cross Sectional Area Overall Diameter Net Weight
586/3.51/3.557.7367.3510.5234
806/4.21/4.283.1396.9812.6336
8015/2.64/2.679.64100.8813386
956/4.51/4.595.43111.3313.5386
10015/2.94/2.999.08125.514.5480
12015/3.24/3.2120.64152.8116585
12030/2.37/2.3124.64153.7216.1574
16030/2.67/2.6159.28196.4518.2734
20030/2.97/2.9198.16244.420.3912
24030/3.27/3.2241.27297.5722.41111
33026/4.07/3.1326.73379.5625.31320
41026/4.57/3.5413.51480.8628.51674
52054/3.57/3.5519.54586.8931.51969
61054/3.87/3.8612.42691.8134.22321
68054/4.07/4.0678.58766.54362572
68045/4.47/2.9684.24730.4835.12260
