300V/500V Rated Voltage Fireproof Instrument Cable with LSZH/PVC Jacket and Flexible Copper Conductor

  • 1
  • 2
  • 3

Rated Voltage : 300V/500V

Corporation : Minfeng cable group

Transport Package : Wooden Steel Drum

Brand Name : Minfeng

Model Number : RE-T2X(st)H/RE-2X(st)H/RE-2X(st)Y/RE-2Y(st)Y

Marking : Laser Printing

Temperature Range : -40°C to +80°C

MOQ : 100m

Delivery Time : 5-8 Days

Place of Origin : Hebei, China

Supply Ability : 100KM/Week

Certification : ISO,CE,IEC,TUV,KEMA

Payment Terms : L/C,T/T

Packaging Details : Wooden Drum

Insulation : XLPE /PVC

Cable Jacket : LSZH/PVC

Price : 0.1-5

Contact Now

RE-2X(st)H SWAH LSZH RE-2Y(st)Y SWAY PVC Cable RE-2X(st)Y PVC RE-T2X(st)H Mica XLPE / CAM / LSZH Cable BS EN 50288-7 300V/500V
Product Overview

Mica tape fireproof instrument cable designed for electrical instrument circuits and communication services in process plants where circuit integrity is required during fire situations.

Rated Voltage 300 V
Working Temperature -40°C to +80°C
Conductor Material Flexible Copper
Insulation Material XLPE / PVC
Jacket LSZH / PVC
Application Industrial, Networking, Electronic Instrumentation
Standard BS EN 50288-7
Brand Name Minfeng
Application

These cables are designed to connect electrical instrument circuits and provide communication services in and around process plants (e.g., petrochemical industry). Not suitable for direct burial applications. Used in areas where circuit integrity is required in the event of a fire situation. For installations where fire, smoke emissions, and toxic fumes create a potential risk to life and equipment.

300V/500V Rated Voltage Fireproof Instrument Cable with LSZH/PVC Jacket and Flexible Copper Conductor

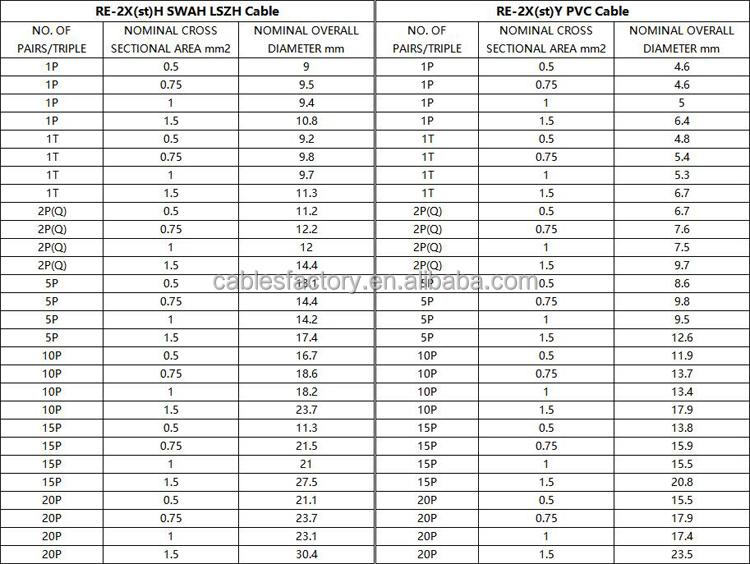

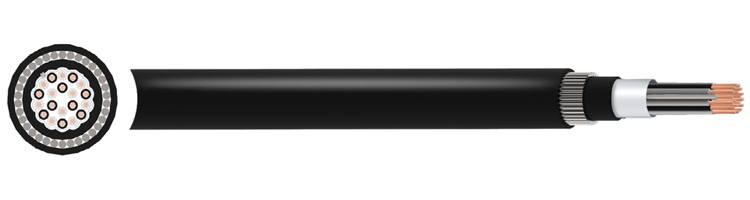

EN 50288-7 - RE-2X(st)H SWAH LSZH Cable
  • Voltage Rating: 300V
  • Operating Temperature: Fixed: -40°C to +80°C, Flexed: 0°C to +50°C
  • Minimum Bending Radius: 10 x overall diameter

Construction: Conductor 0.5mm² - 0.75mm²: Class 5 flexible Copper; 1mm² and above: Class 2 stranded Copper. Insulation: XLPE (Cross-Linked Polyethylene). Collective Screen: Al/PET (Aluminium/Polyester Tape). Drain Wire: Tinned Copper. Inner Sheath: LSZH (Low Smoke Zero Halogen). Armour: SWA (Galvanised steel wires). Outer Sheath: LSZH (Low Smoke Zero Halogen) - UV Resistant.

300V/500V Rated Voltage Fireproof Instrument Cable with LSZH/PVC Jacket and Flexible Copper Conductor
EN 50288-7 - RE-2X(st)Y PVC Cable
  • Voltage Rating: 300V
  • Operating Temperature: Fixed: -40°C to +80°C, Flexed: 0°C to +50°C
  • Minimum Bending Radius: 6 x overall diameter

Construction: Conductor 0.5mm² - 0.75mm²: Class 5 flexible copper conductor; 1mm² and above: Class 2 stranded copper conductor. Insulation: XLPE (Cross-Linked Polyethylene). Collective Screen: Al/PET (Aluminium/Polyester Tape). Drain Wire: Tinned copper. Sheath: PVC (Polyvinyl Chloride) - UV Resistant.

300V/500V Rated Voltage Fireproof Instrument Cable with LSZH/PVC Jacket and Flexible Copper Conductor 300V/500V Rated Voltage Fireproof Instrument Cable with LSZH/PVC Jacket and Flexible Copper Conductor

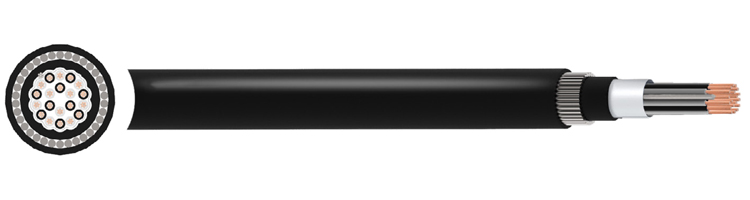

EN 50288-7 - RE-2Y(st)Y SWAY PVC Cable
  • Voltage Rating: 300V
  • Operating Temperature: Fixed: -40°C to +80°C, Flexed: 0°C to +50°C
  • Minimum Bending Radius: 10 x overall diameter

Construction: Conductor 0.5mm² - 0.75mm²: Class 5 flexible copper conductor; 1mm² and above: Class 2 stranded copper conductor. Insulation: PE (Polyethylene). Collective Screen: Al/PET (Aluminium/Polyester Tape). Drain Wire: Tinned Copper. Inner Sheath: PVC (Polyvinyl Chloride). Armour: SWA (Galvanised steel wires). Outer Sheath: PVC (Polyvinyl Chloride) - UV Resistant.

300V/500V Rated Voltage Fireproof Instrument Cable with LSZH/PVC Jacket and Flexible Copper Conductor

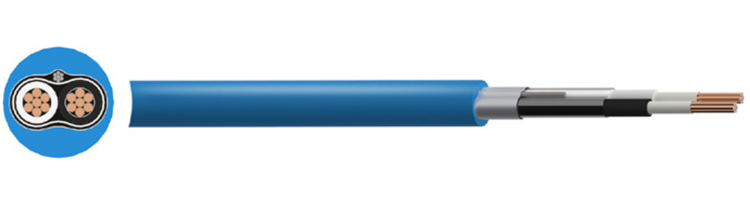

RE-T2X(st)H - BS EN 50288-7 Mica XLPE / CAM / LSZH Cable
  • Voltage Rating (Uo/U): 300/500V
  • Operating Temperature: Fixed: -30°C to +90°C
  • Minimum Bending Radius: 7.5 x overall diameter

Construction: Conductor: Class 2 stranded copper conductor. Insulation: Mica Tape / XLPE (Cross-Linked Polyethylene). Individual And Collective Screen Or Collective Screen: PET (Polyester Tape), AL/PET (Aluminium/Polyester Tape) with tinned drain wire. Multi-Core, Multi-Pair, PiMF and TiMF Type. Sheath: LSZH (Low Smoke Zero Halogen).

300V/500V Rated Voltage Fireproof Instrument Cable with LSZH/PVC Jacket and Flexible Copper Conductor

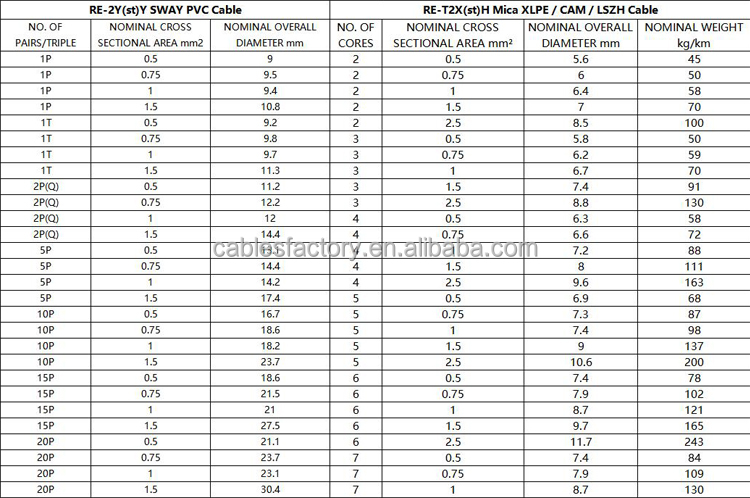

RE-T2X(st)H Mica XLPE / CAM / LSZH Cable Specifications
No. of Cores Nominal Cross Sectional Area (mm²) Nominal Overall Diameter (mm) Nominal Weight (kg/km)
71.59.7179
72.511.7265
100.59.4115
100.7510.1152
10111.1192
101.512.4253
102.515374
120.59.6135
120.7510.4173
12111.5220
121.512.8292
122.515.4433
190.511.5201
190.7512.3260
19113.4322
191.515.1445
192.518.3665
