YJV 0.6/1KV 3*25+2*16 Low Voltage Cable XLPE Insulated PVC Sheath Power Cable

Product Categories
Minfeng Cable Group Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

YJV 0.6/1KV 3*25+2*16 Low Voltage Cable XLPE Insulated PVC Sheath Power Cable

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Model No : Low Voltage Power Cable

Model Number : Low Voltage Power Cable

MOQ : 100

Certification : ISO,CE,IEC,TUV,KEMA

Brand Name : Minfeng

Cable Application : Building, Engineered, Railway, Plant construction, School, Hospital, Underground and so on.

Working Degree : <=90℃

Minimum Order : 100m

Voltage : 0.6/1KV

Cable Type : XLPE Insulated Power Cable

Payment Terms : L/C,T/T

Place of Origin : Hebei, China

Price : 0.1-5

Contact Now

Key attributes


Size
1.5-1000mm2
Conductor Material
Copper/Aluminum
Insulation Material
XLPE/PVC
Jacket
PVC
Application
Construction&Industrial
Type
Low Voltage
Place of Origin
Hebei, China
Model Number
LV-YJV/YJLV
Brand Name
Minfeng
Product name
4 core power cable
Standard
BS IEC ASTM DIN
Voltage
0.6/1KV
Number of Cores
1, 2, 3, 4, 5, 3+1, 4+1, 3+2 Cores
Conductor
Copper/Aluminum
Insulation
XLPE/PVC
Sheath
PVC
Armour
SWA/STA/Non
MOQ
100M
Sample
Availaible
Product Description

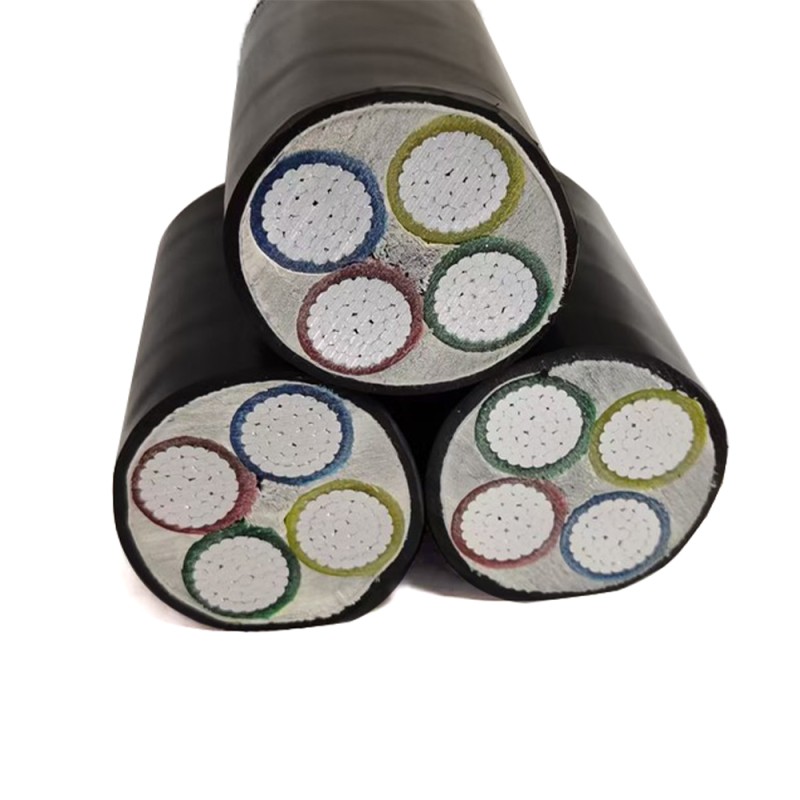

YJV 0.6/1KV 3*25+2*16 Low Voltage Cable XLPE Insulated PVC Sheath Power Cable

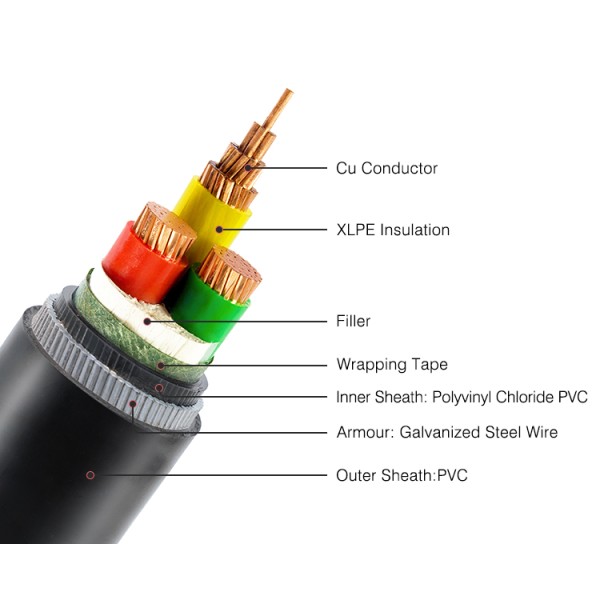

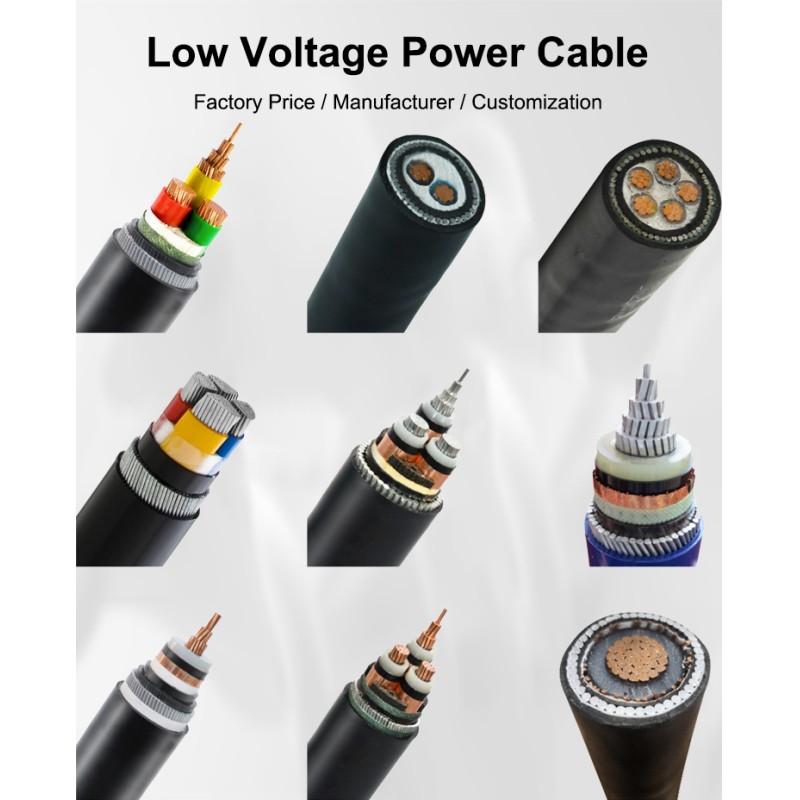

0.6/1kv Flexible Copper/Aluminum 1C 2C 3C 4C 3+1C 4+1C 3+2C SWA/STA PVC XLPE EPR Insulated PVC Sheathed Electrical Power Cable Wire

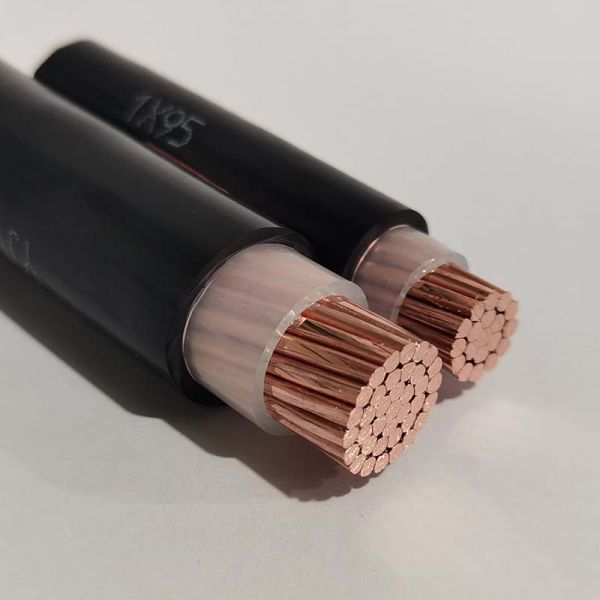

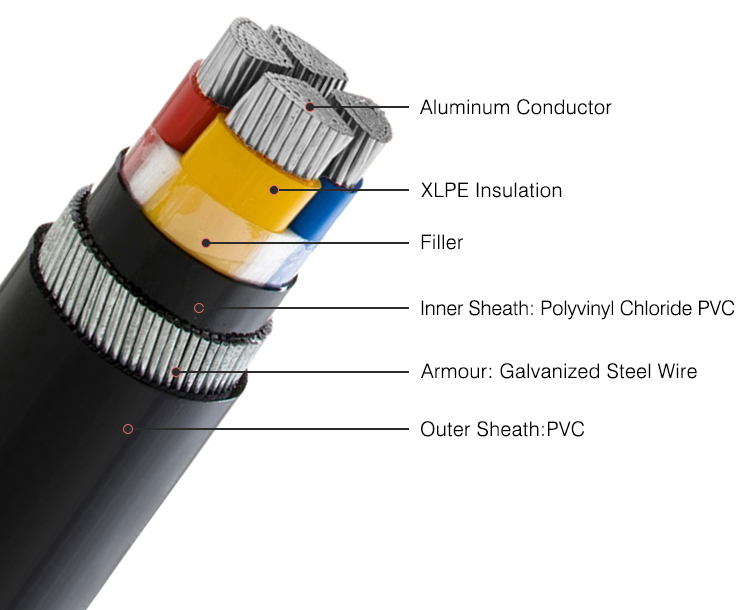

Conductor: Copper/Tinned Copper/Aluminium
Insulation/Jacket: XLPE/PVC

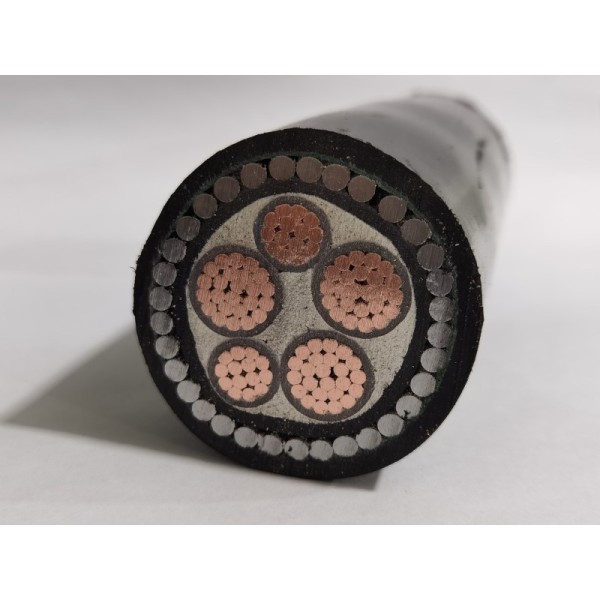

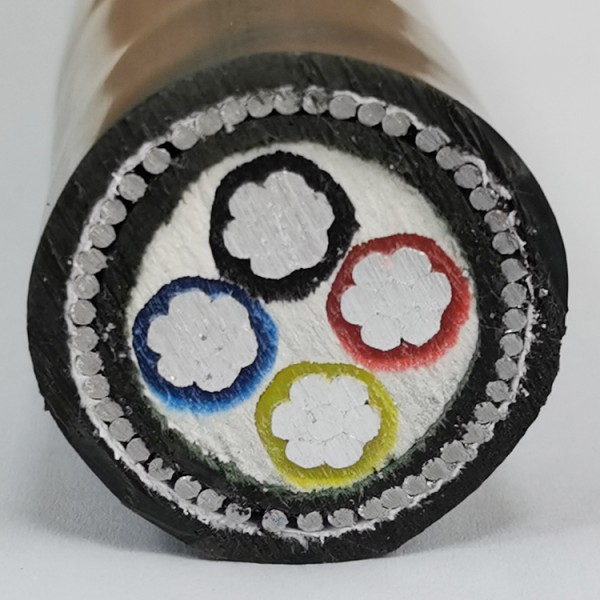

Armor: SWA(Steel Wire Armored) / STA(Steel Tape Armored) or Non-Armored

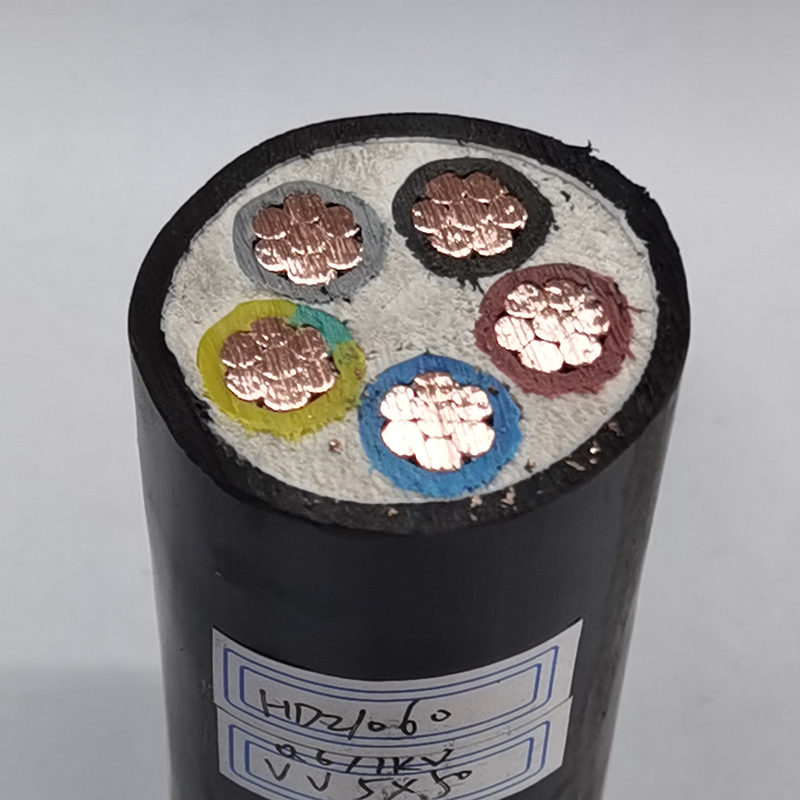

Cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
Section Area: 1.5mm2-1000mm2
Standard: IEC 60502, BS 7870, GB/T12706 or other.

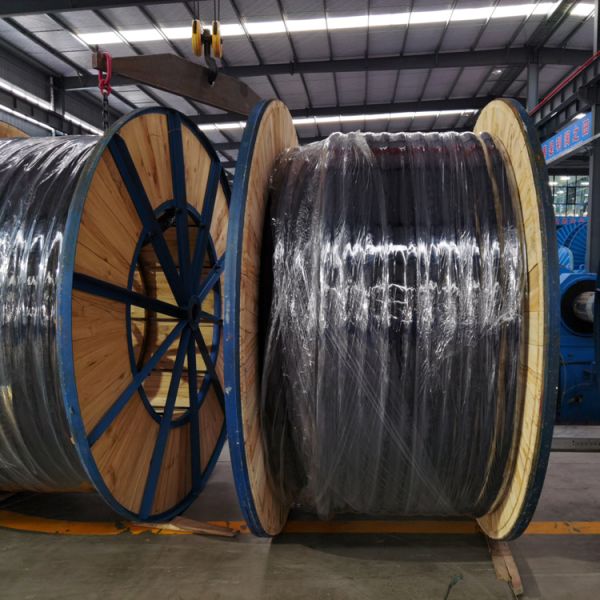

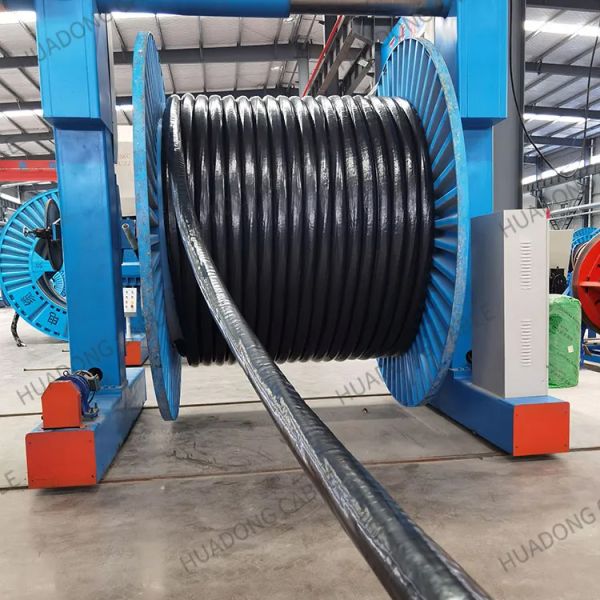

Packaging: Iron Or Wooden Drum
Application: Building, Engineered, Railway, Plant construction, School, Hospital, Underground and so on.
We can customize the size according to your requirement.
YJV 0.6/1KV 3*25+2*16 Low Voltage Cable XLPE Insulated PVC Sheath Power Cable
YJV 0.6/1KV 3*25+2*16 Low Voltage Cable XLPE Insulated PVC Sheath Power Cable
YJV 0.6/1KV 3*25+2*16 Low Voltage Cable XLPE Insulated PVC Sheath Power Cable
YJV 0.6/1KV 3*25+2*16 Low Voltage Cable XLPE Insulated PVC Sheath Power Cable
YJV 0.6/1KV 3*25+2*16 Low Voltage Cable XLPE Insulated PVC Sheath Power Cable
YJV 0.6/1KV 3*25+2*16 Low Voltage Cable XLPE Insulated PVC Sheath Power Cable
YJV 0.6/1KV 3*25+2*16 Low Voltage Cable XLPE Insulated PVC Sheath Power Cable
YJV 0.6/1KV 3*25+2*16 Low Voltage Cable XLPE Insulated PVC Sheath Power Cable
YJV 0.6/1KV 3*25+2*16 Low Voltage Cable XLPE Insulated PVC Sheath Power Cable
YJV 0.6/1KV 3*25+2*16 Low Voltage Cable XLPE Insulated PVC Sheath Power Cable
Specification
Cross Section
Stranding
Approx Weight
Approx Overall Diameter
Current Rating Laid Direct
mm²
mm
Kg/Km
mm
Amp
4 x 2.5
7/0.53
351
12.88
32
4 x 2.5
7/0.67
429
14.43
42
4 x 6.0
7/1.04
670
17.87
69
4 x 10
7/1.35
998
20.1
92
4 x 16
7/1.70
1,272
22.4
119
4 x 25
7/2.14
1,940
27
152
4 x 35
7/2.52
2,390
30.1
182
4 x 50
19/1.78
2,925
31.5
217
4 x 70
19/2.14
4,200
37.4
266
4 x 95
19/2.52
5,335
40.9
319
4 x 120
37/2.03
6,925
46.6
363
4 x 150
37/2.25
8,200
50.2
406
4 x 185
37/2.52
9,975
55.8
458
4 x 240
61/2.52
12,700
62.5
529
4 x 300
61/2.85
15,275
67.4
592
4 x 400
61/3.20
19,875
77
667
No. Cores
Nominal
Conductor Area
(mm2)
No. and Diameter of Wires
(no./mm)
Radial Thickness of Insulation
(mm)
Diameter
Under Armour
(mm)
Approximate
Weight
(kg/km)
4
1.5
7 / 0.53
0.8
11.8
216
4
2.5
7 / 0.67
0.8
12.8
267
4
4
7 / 0.85
1
15.3
379
4
6
7 / 1.04
1
16.7
477
4
10
7 / 1.35
1
18.9
669
4
16
7 / 1.70
1
21.5
932
4
25
7 / 2.14
1.2
25.6
1372
4
35
7 / 2.52
1.2
28.4
1785
4
50 (S)
19 / 1.78
1.4
32.7
2388
4
70 (S)
19 / 2.14
1.4
36.7
3269
4
95 (S)
19 / 2.52
1.6
42.2
4437
4
120 (S)
37 / 2.03
1.6
45.9
5469
4
150 (S)
37 / 2.25
1.8
51.1
6690
4
185 (S)
37 / 2.52
2
56.3
8287
4
240 (S)
61 / 2.25
2.2
63.3
10766
4
300 (S)
61 / 2.52
2.4
70.2
13373
4
400 (S)
61 / 2.85
2.6
79.7
16968
4
500 (S)
61 / 3.20
2.8
88
21161
