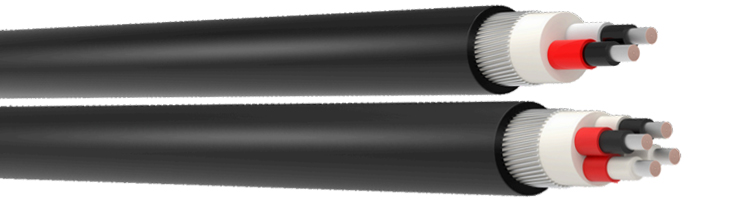

SWA Multi Core Solar PV Cable with Tinned Annealed Copper and Double Insulated Cross-Linked for Industrial Use

  • 1
  • 2

Insulation : Double insulated cross-linked

Packaging Details : Wooden Drum

MOQ : 100m

Application : Industrial

Certification : ISO,CE,IEC,TUV,KEMA

Supply Ability : 100KM/Week

Packing Style : Steel/ Wooden Drum

Place of Origin : Hebei, China

Model Type : Solar PV Cable

Brand Name : Minfeng

Delivery Time : 5-8 Days

Cable Jacket : PVC

Payment Terms : L/C,T/T

Working Temperature : -15°C to +90°C

Number Of Cores : Multi Core

Model Number : Solar PV Cable

Price : 0.1-5

Contact Now

SWA Multi Core Solar PV Cable Pv ultra Cable Armoured Solar DC Cable
Tinned Annealed Copper Class 5 Flexible Conductor specifically designed for photovoltaic system DC interconnections.
Product Attributes
Conductor Material Tinned Annealed Copper
Insulation Material Double insulated cross-linked
Working Temperature -15°C to +90°C
Jacket PVC
Application Industrial
Place of Origin Hebei, China
Brand Name Minfeng
Standard BS7671
SWA Multi Core Solar PV Cable with Tinned Annealed Copper and Double Insulated Cross-Linked for Industrial Use
Application
This cable is specifically crafted to fulfil the DC interconnection requirements between solar panels and other components within the photovoltaic system, including isolators and inverters. PV-Ultra boasts outstanding mechanical properties, enabling installation both internally and externally. Crafted with premium materials, it is designed to ensure an expected lifespan of approximately 25 years.
The cables are engineered to function at a standard maximum conductor temperature of 90°C. However, they are permitted to operate at a maximum conductor temperature of 120°C for up to 20,000 hours, provided the maximum ambient temperature does not exceed 90°C.
Technical Data
  • Temperature Rating: From -15°C to +90°C
  • Standards/Approvals: BS7671
Construction Details
  • Conductor: Tinned Annealed Copper Class 5 Flexible
  • Insulation: Double insulated cross-linked and fulfilling the requirements of BS EN 50618 Annex B
  • Bedding: Carbon
  • Armour: Steel Wire Armour (SWA)
  • Sheath: Solar
Specification Table
Number and Nominal CSA of Conductors Max. Cond. Res. Ω/km Nom. OD of bedding mm Nom. Dia. Galv. Steel Wire Armour mm Approx. OD mm Approx. weight Kg/Km Current Rating (Clipped) A
2 x 4.0mm² SWA 5.09 12.6 0.9 16.8 550 52
2 x 6.0mm² SWA 3.39 14.0 1.25 19.0 730 67
2 x 10.0mm² SWA 1.95 17.0 1.25 21.8 1030 93
4 x 4.0mm² SWA 5.09 15.3 1.25 20.1 815 44
4 x 6.0mm² SWA 3.39 17.0 1.25 22.0 990 57
4 x 10.0mm² SWA 1.95 20.3 1.25 25.3 1500 93
