Name: 11kV 185mm 3 Core XLPE Copper Underground Power Cable for Medium Voltage Applications
Brand: Minfeng
Price: 0.1 USD

Price : 0.1-5

Delivery Time : 10 Days

Cores No : 1-5

Halogen Free : Available

Core Mark : Number or Color Strip

Supply Ability : 100KM/Week

Certification : ISO,CE,IEC,TUV,KEMA

Insulation : XLPE

Model Number : underground cable

Payment Terms : L/C,T/T

Flame Retardant : Available

Brand Name : Minfeng

Place of Origin : Hebei, China

Type : YJV YJV22 YJV32

Conductor Material : copper or Al-alloy

MOQ : 100

Outer Sheath Color : Black or as per required

Contact Now

11kv 185mm 3 Core XLPE Copper Underground Cable

Product Overview

High-quality underground power cable designed for medium voltage applications with excellent performance characteristics and reliable operation.

Key Specifications

Specification	Details
Conductor Material	Copper / Aluminum
Insulation Material	PVC / XLPE
Jacket	PVC
Application	Underground
Type	Medium Voltage
Place of Origin	Henan, China
Model Number	YJV, YJLV
Brand Name	RMjT
Certificate	ISO9001/ISO14001/OHSAS18001/CCC
Standard	GB/T12706.1-2008, IEC60502-1-1997
Number of Cores	1, 2, 3, 4, 5, 3+1, 3+2, 4+1, etc.
Rated Voltage	1-35KV
Armoured Options	Steel tape armored, steel wire armored
Available Sizes	1mm²~300mm², etc.
Voltage Ratings	0.6/1KV, 6/10KV, 8.7/15KV, 12/20KV, 18/20KV, 21/35KV, 6/35KV

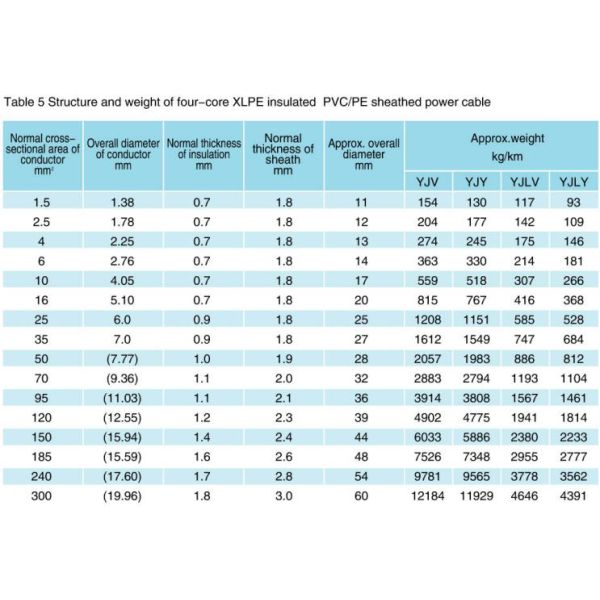

Product Images

Detailed Product Information

Feature	Description
Product Name	Copper core or aluminum core XLPE insulated PVC sheathed power cable Copper core or aluminum core XLPE insulated steel tape armoured PVC sheathed power cable Copper core or aluminum core XLPE insulated steel wire armoured PVC sheathed power cable
Rated Voltage	0.6/1kv, 1.8/3kv, 3.6/6kv, 6/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv
Standard	GB/T12706-2008, GB/T12703-200, IEC60502-1-1997
Model	YJV, YJLV, YJV22, YJLV22, YJV32, YJLV32, YJV42, YJLV42
Armoured Options	Steel tape armored, steel wire armored Double galvanized steel tape or galvanized steel wire for three core power cable Double aluminium tape or aluminium wire for single power cable
Number of Cores	Single core, 2 cores, 3 cores, 4 cores, 5 cores, 3+1 cores, 3+2 cores, 4+1 cores, etc.
Common Sizes	1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², 400mm², 500mm², 630mm², 800mm², 1000mm², etc.
Types	Ordinary type, flame-retardant type, fire-resistant type, low-smoke halogen-free type
Application	Power distribution engineering, power transmission engineering, electromechanical and hydropower installation engineering, power transmission, power supply installation system, control system, etc.

Installation Precautions

The minimum bending radius when laying the cable is not less than 10 times the outer diameter of the cable
YJV / YJLV cables are laid indoors, in channels and pipes, and can also be buried in loose soil, which cannot bear external forces
YJV22 / YJLV22 cables are laid underground and can withstand external mechanical forces, but cannot withstand large tensile forces
Special tools should be used for cable laying, such as pay-off racks, guide rollers, etc., to prevent mechanical damage during the laying process and keep away from heat sources
When laying the cable through the pipe, the inner diameter of the pipe should not be less than 1.5 times the outer diameter of the cable. It is forbidden to squeeze the cable when passing through the pipe. The total area of the cable should not exceed 40% of the total area of the pipe
