0.6/1kV Electrical XLPE Insulated Power Cable PVC Sheathed Power Cable For Power Distribution

Payment Terms : L/C,T/T

Delivery Time : 10 Days

MOQ : 100

Outer Sheath Color : Black or as per required

Type : YJV YJV22 YJV32

Insulation : XLPE

Halogen Free : Available

Brand Name : Minfeng

Place of Origin : Hebei, China

Core Mark : Number or Color Strip

Conductor Material : copper or Al-alloy

Cores No : 1-5

Certification : ISO,CE,IEC,TUV,KEMA

Supply Ability : 100KM/Week

Flame Retardant : Available

Price : 0.1-5

Model Number : R2V

Contact Now

0.6/1kV 3G16 3G4 3G6 3G1,5 3G2,5 3G10 3G25 U1000 R2V R02V U1000 XLPE Electrical Power Cable
Product Specifications
Rated Voltage 0.6/1kV
Size 1.5-500mm²
Conductor Material Copper
Insulation Material XLPE
Working Temperature 90°C
Jacket PVC
Application Construction, Building, Photovoltaic Power, Power Distribution, Power Station
Type Low Voltage, Un-armoured
Place of Origin Hebei, China
Model Number U1000 R2V RO2V
Brand Name Minfeng
Cores 1, 2, 3, 4, 5, 3+1 Cores
Standard IEC 60502/XP C 32-321/NF C 32-321
MOQ 500 Meters
Product Description

U-1000 R2V RO2V Power cable 0.6/1 kV with copper conductors, XLPE insulated and PVC sheathed.

Applications

U-1000 R2V/RO2V cables can be used in all low voltage power installations. Multi-conductor cables are adapted to remote control and telecontrol installations. In case of high ambient temperature, use correction coefficient.

Installation

These cables can be fixed on cable trays, within conduits or fixed to walls. They also can be buried directly with extra mechanical protection. Cross sections 1.5, 2.5 and 4 mm² have to be of class 2 flexibility, if the cable is connected to equipment subject to vibration.

Construction
  • Conductors: Copper, class 2 according to EN 60228
  • Insulation: XLPE compound
  • Bedding: Extruded elastomere or plastomere compound
  • Sheath: PVC compound
  • Identification of cores HD 308 S2:
    • 2x - brown and blue
    • 3x - brown, black and blue (S=1.5/2.5 mm²)
    • 3x - brown, black and gray (S≥4 mm²)
    • 3G - brown, blue and yellow/green
    • 4x - brown, black, gray, blue
    • 4G - brown, black, gray, yellow/green
    • 5G - brown, black, gray, blue, yellow/green
Technical Data and Tests
Standards NF C 32-321 C32-321/A1; IEC 60502-1 NF EN 60332-1-2; NF C 15-100
Nominal voltage U0/U 0.6/1 kV
Test voltage (50 Hz) 4 kV
Maximum voltage Um 1.2 kV
Maximum operating temperature +90°C

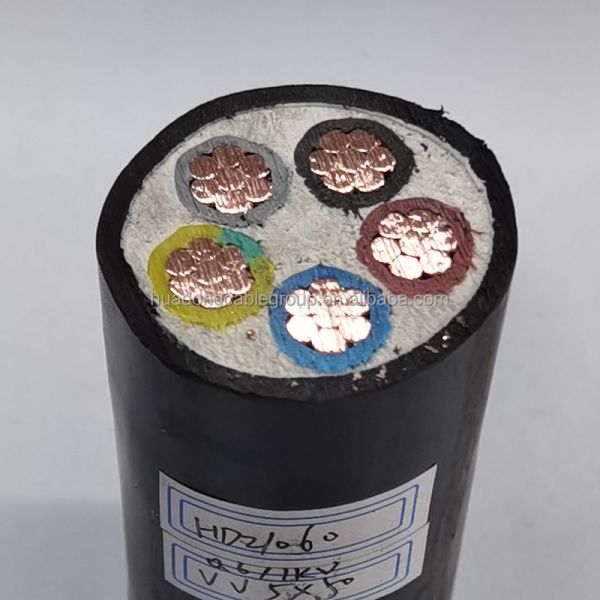

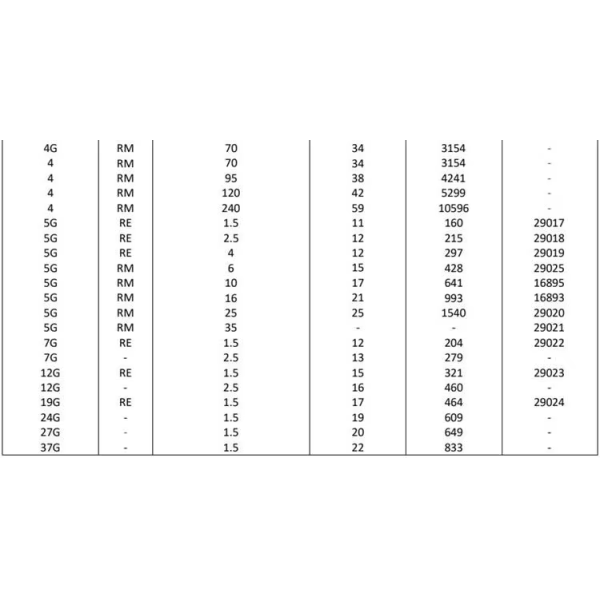

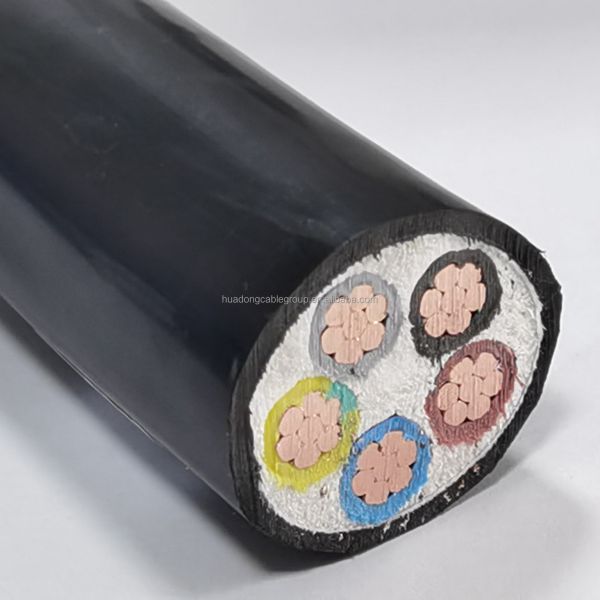

Product Images
0.6/1kV Electrical XLPE Insulated Power Cable PVC Sheathed Power Cable For Power Distribution 0.6/1kV Electrical XLPE Insulated Power Cable PVC Sheathed Power Cable For Power Distribution 0.6/1kV Electrical XLPE Insulated Power Cable PVC Sheathed Power Cable For Power Distribution 0.6/1kV Electrical XLPE Insulated Power Cable PVC Sheathed Power Cable For Power Distribution 0.6/1kV Electrical XLPE Insulated Power Cable PVC Sheathed Power Cable For Power Distribution 0.6/1kV Electrical XLPE Insulated Power Cable PVC Sheathed Power Cable For Power Distribution

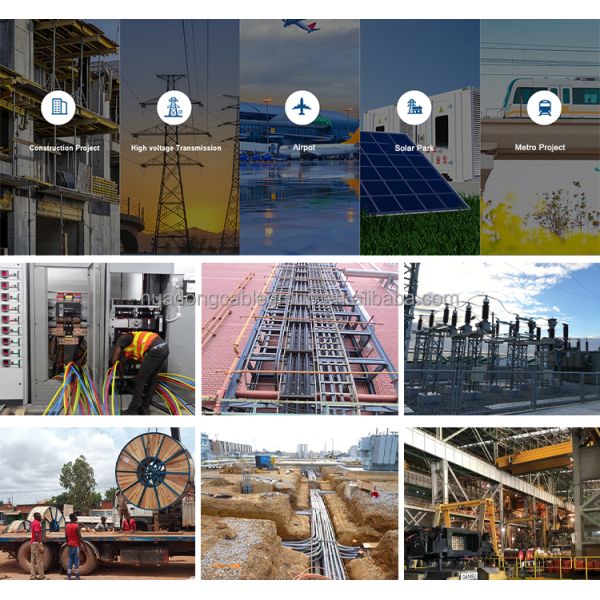

Customer Project
0.6/1kV Electrical XLPE Insulated Power Cable PVC Sheathed Power Cable For Power Distribution
