XHP-48 N2XSY Medium Voltage Power Cable 6/10 KV Rated Voltage Bare Copper Conductor PVC Outer Sheath

MOQ : 100

Payment Terms : L/C,T/T

Core Mark : Number or Color Strip

Brand Name : Minfeng

Cores No : 1-5

Supply Ability : 100KM/Week

Certification : ISO,CE,IEC,TUV,KEMA

Halogen Free : Available

Outer Sheath Color : Black or as per required

Flame Retardant : Available

Model Number : N2XSY

Place of Origin : Hebei, China

Delivery Time : 10 Days

Conductor Material : copper or Al-alloy

Type : YJV YJV22 YJV32

Price : 0.1-5

Insulation : XLPE

Contact Now

XHP-48 N2XSY Copper Conductor XLPE Insulation PVC Outer Sheath Medium Voltage 6/10kV Overhead Industrial Power Cable
Product Overview
N2XSY cable is designed for power distribution networks, transformer stations, switching blocks and power plants, including in the renewable energy sector. It offers robust construction and low dielectric loss for high operational reliability.
Technical Specifications
Parameter Specification
Rated Voltage 6/10 kV, 12/20 kV, 18/30 kV, 20.8/36 kV
Conductor Material Bare Copper
Insulation Material XLPE
Working Temperature 90°C
Jacket Material PVC
Test Voltage 21 kV / 42 kV / 63 kV
Maximum Operating Temperature (Fixed) 70°C
Installation Temperature Range -5°C to +70°C
Bending Radius (Fixed Install) 15 x diameter
Partial Discharge 2 pC
Type Medium Voltage
Model Number N2XSY

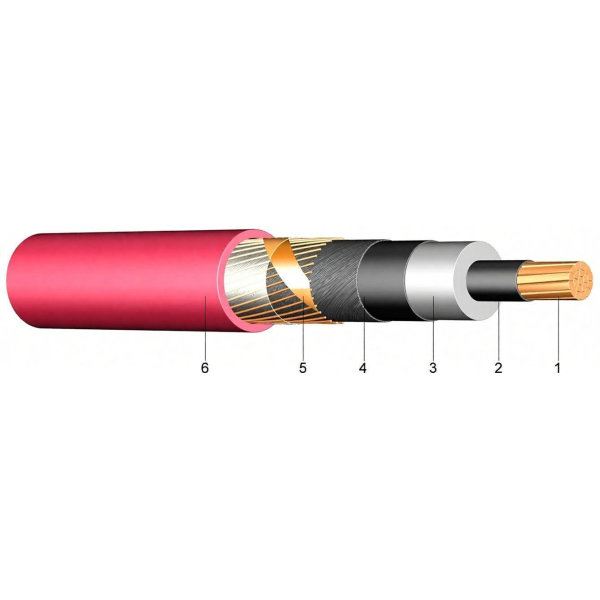

Cable Construction
  1. Conductor: Stranded bare copper
  2. Inner layer: Semi-conducting material
  3. Insulation: Cross-linked Polyethylene (XLPE)
  4. Outer layer: Semi-conducting material
  5. Screen: Copper wires
  6. Outer sheath: PVC
XHP-48 N2XSY Medium Voltage Power Cable 6/10 KV Rated Voltage Bare Copper Conductor PVC Outer Sheath
Applications

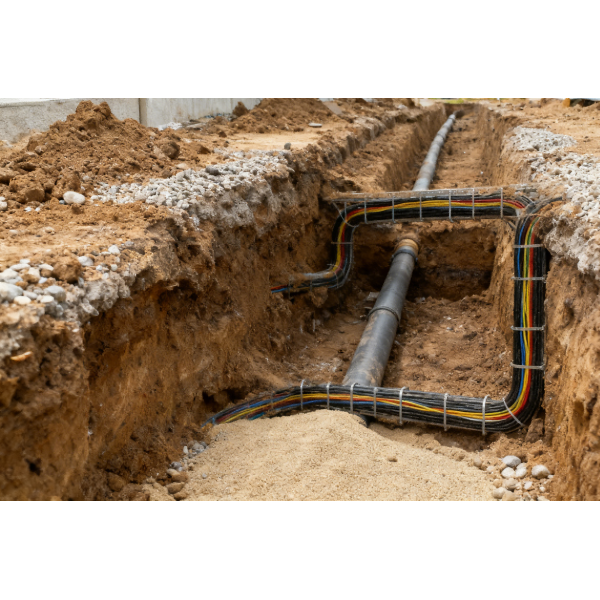

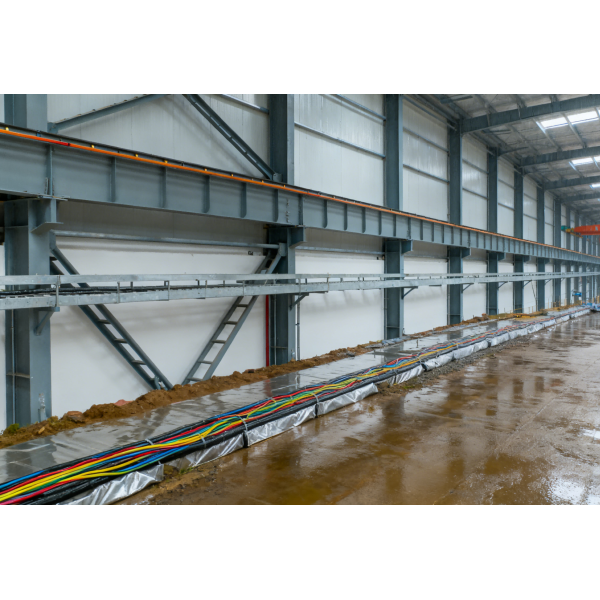

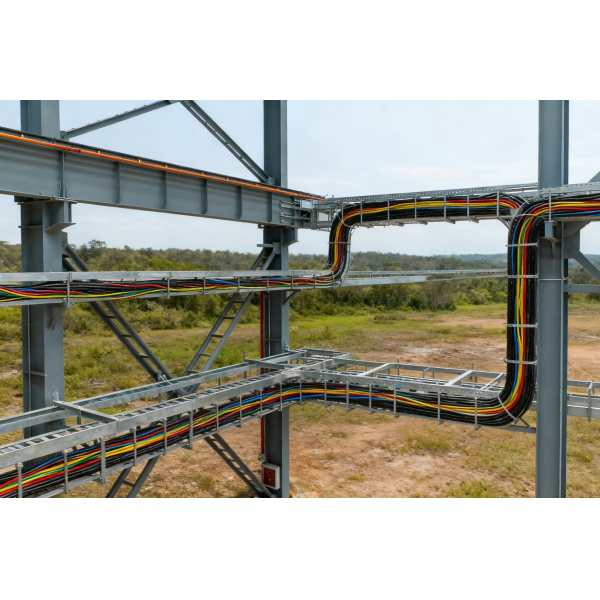

For installation in ground, in water, outdoors, indoors and in cable ducts for power stations, industry, and distribution networks. The cable's excellent installation properties make installation easy, even on difficult routes.
Primary Applications: Power Distribution, Industrial, Power Station, Overhead, Switching System, Local Network
XHP-48 N2XSY Medium Voltage Power Cable 6/10 KV Rated Voltage Bare Copper Conductor PVC Outer Sheath XHP-48 N2XSY Medium Voltage Power Cable 6/10 KV Rated Voltage Bare Copper Conductor PVC Outer Sheath XHP-48 N2XSY Medium Voltage Power Cable 6/10 KV Rated Voltage Bare Copper Conductor PVC Outer Sheath
Installation Notes
This cable should not be subjected to heavy mechanical or tensile strain. N2XSY cable is red and must be protected against sunlight and UV radiation according to HD605 S2:2008 2.4.23. According to VDE 0276-603, cable must be protected against direct sun irradiation.
