XLPE Insulated 4 Core Armored Power Cable With Copper Conductor Industrial Commercial Use

Name: XLPE Insulated 4 Core Armored Power Cable With Copper Conductor Industrial Commercial Use
Brand: Minfeng
Price: 0.1 USD

Buy cheap XLPE Insulated 4 Core Armored Power Cable With Copper Conductor Industrial Commercial Use product

Brand Name : Minfeng

Model Number : armored cable

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

MOQ : 100

Price : 0.1-5

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Productname : Armoured Cable

Standard : AISI, ASTM, BS, DIN, GB, JIS

Cabletype : Armoured

Sheathmaterial : PVC or PE

Cablesize : Varies from 1.5mm² to 1000mm²

Conductormaterial : Copper or Aluminum

Flameretardant : Yes/No

Insulationmaterial : PVC, XLPE, or Rubber

Contact Now

VV32 YJV32 4C XLPE Insulated 70mm² 4 Core 50mm² 5x16mm Armored Electrical Power Cable with Copper Conductor

Product Overview

The YJV Power Cable is a premium-grade electrical cable designed for efficient and safe power transmission in various industrial, commercial, and residential applications. Featuring cross-linked polyethylene (XLPE) insulation and PVC sheath, this cable offers excellent thermal stability, high voltage resistance, and long-term durability.

Technical Specifications

Size (mm²)	Conductor Class	Insulation (mm)	Sheath (mm)	Overall Diameter (mm)	Net Weight (kg/km)	Resistance (Ω/km)
4 x 1.5	1	0.7	1.8	17.0	148	12.1
4 x 2.5	1	0.7	1.8	18.0	197	7.41
4 x 4	1	0.7	1.8	19.1	270	4.61
4 x 6	1	0.7	1.8	20.3	367	3.08
4 x 10	2	0.7	1.8	22.3	559	1.83
4 x 16	2	0.7	1.8	24.5	820	1.15
4 x 25	2	0.9	1.8	27.5	1179	0.727
4 x 35	2	0.9	1.9	29.5	1563	0.524
4 x 50	2	1.0	2.0	32.9	2078	0.387
4 x 70	2	1.1	2.2	36.7	2934	0.268
4 x 95	2	1.1	2.3	40.5	3965	0.193
4 x 120	2	1.2	2.4	45.3	49755	0.153
4 x 150	2	1.4	2.6	50.0	5124	0.124
4 x 185	2	1.6	2.8	54.2	7854	0.0991
4 x 240	2	1.7	3.0	60.4	9987	0.0754
4 x 300	2	1.8	3.1	65.7	12365	0.0601
4 x 400	2	2.0	3.2	74.2	15996	0.0470

XLPE Insulated 4 Core Armored Power Cable With Copper Conductor Industrial Commercial Use

Product Tags:

XLPE Insulated Armored Power Cable

Commercial Armored Power Cable

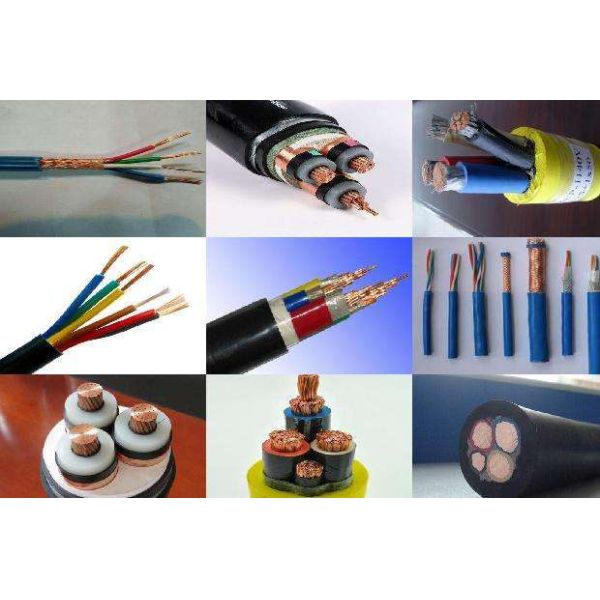

XLPE Insulated 4 Core Armored Power Cable With Copper Conductor Industrial Commercial Use Images
