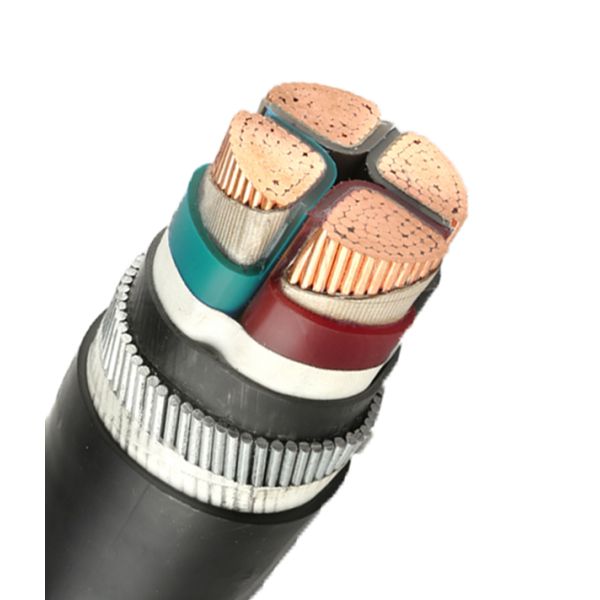

2 - 4 Core Copper Conductor Armoured Power Cable 16mm - 95mm For Underground Applications

Name: 2 4 Core Copper Conductor Armoured Power Cable 16mm 95mm For Underground Applications
Brand: Minfeng
Price: 0.1 USD

Buy cheap 2 - 4 Core Copper Conductor Armoured Power Cable 16mm - 95mm For Underground Applications product

Brand Name : Minfeng

Model Number : armored cable

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

MOQ : 100

Price : 0.1-5

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Productname : Armoured Cable

Standard : AISI, ASTM, BS, DIN, GB, JIS

Cabletype : Armoured

Sheathmaterial : PVC or PE

Cablesize : Varies from 1.5mm² to 1000mm²

Conductormaterial : Copper or Aluminum

Flameretardant : Yes/No

Insulationmaterial : PVC, XLPE, or Rubber

Contact Now

2 Core 3 Core 4 Core 16mm 25mm 35mm 95mm Copper Conductor Steel Wire PVC/XLPE Underground Armoured Power Cable

Product Overview

Underground low voltage cables provide optimal safety and environmental protection for power distribution networks. AoGuLi offers a comprehensive range of LV underground power cables with superior quality, technical expertise, and extensive manufacturing capabilities.

Key Specifications

Conductor Material

Copper or Aluminum

Insulation Material

XLPE, PE, or PVC

Jacket Material

XLPE, PE, or PVC

Application

Underground

Type

LV, MV, HV

Conductor Options

Soft Bare Copper, Tinned Copper, Aluminum

Size Range

1.5mm² - 300mm²

Rated Voltage

600/1000V, 6.35/11kV, 19/33kV

Armour Types

SWA, STA, AWA, ATA

Certification

ISO

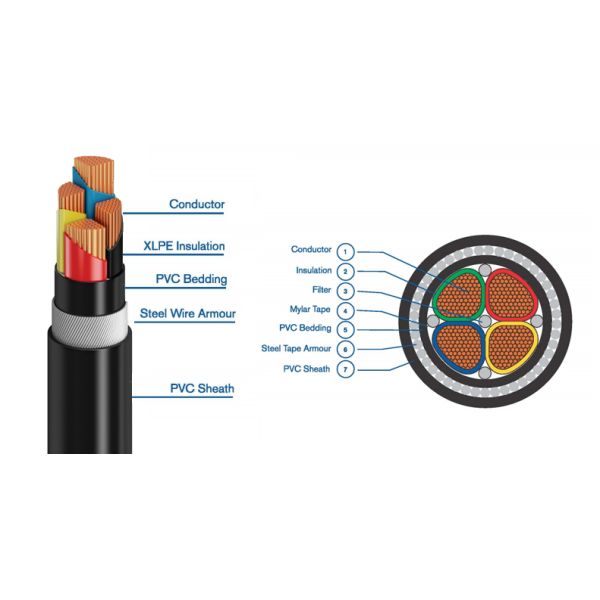

Power Cable Construction

Conductor: Plain stranded copper or aluminium
Insulation: Cross-linked polyethylene (XLPE) providing high temperature resistance and excellent dielectric strength
Bedding: Protective barrier layer between insulation and armour
Armour: SWA/STA/AWA or non-armoured options
Sheath: Holds cable components together with additional protection; black sheaths carbon-loaded for UV stability
Voltage Ratings: 600/1000V, 6.35/11kV and 19/33kV

Applications

Unarmoured Cables: Designed for general use including underground burial where mechanical damage is unlikely.

Armoured Cables: Most suitable for underground burial where there is risk of mechanical damage.

Standards Compliance

International: IEC 60502, IEC 60228, IEC 60332, GB/T 12706.1, BS 5467. Other standards such as BS, DIN and ICEA available upon request.

XLPE Power Cable Technical Data

Cores x Cross-section (N x mm²)	Conductor Construction (n x mm)	Insulation Thickness (mm)	Sheath Thickness (mm)	Conductor Resistance at 20°C max. (Ω/km)	Cable Weight approx. (kg/km)
1 x 4	1 x 2.25	0.7	1.8	4.61	72
1 x 6	1 x 2.76	0.7	1.8	3.08	92
1 x 10	1 x 3.56	0.7	1.8	1.83	142
1 x 16	1 x 4.51	0.7	1.8	1.15	205
1 x 25	7 x 2.13	0.9	1.8	0.727	303
1 x 35	7 x 2.52	0.9	1.8	0.524	394
1 x 50	19 x 1.83	1	1.8	0.387	516
1 x 70	19 x 2.17	1.1	1.8	0.268	721
1 x 95	19 x 2.52	1.1	1.8	0.193	992
1 x 120	37 x 2.03	1.2	1.8	0.153	1196
1 x 150	37 x 2.27	1.4	1.8	0.124	1509
1 x 185	37 x 2.52	1.6	1.8	0.0991	1850
1 x 240	61 x 2.24	1.7	1.8	0.0754	2394
1 x 300	61 x 2.50	1.8	1.9	0.0601	2964
1 x 400	61 x 2.89	2	2	0.047	3838
1 x 500	61 x 3.23	2.2	2.1	0.0366	4863
1 x 630	91 x 2.97	2.4	2.2	0.0283	6285
2 x 1.5	1 x 1.38	0.7	1.8	12.1	126
2 x 2.5	1 x 1.78	0.7	1.8	7.41	157
2 x 4	1 x 2.25	0.7	1.8	4.61	200
2 x 6	1 x 2.76	0.7	1.8	3.08	253
2 x 10	1 x 3.56	0.7	1.8	1.83	395
2 x 16	1 x 4.51	0.7	1.8	1.15	558
2 x 25	7 x 2.13	0.9	1.8	0.727	811
2 x 35	7 x 2.52	0.9	1.8	0.524	1038
2 x 50	19/1.83	1	1.8	0.387
3 x 1.5	1 x 1.38	0.7	1.8	12.1	147
3 x 2.5	1 x 1.78	0.7	1.8	7.41	187
3 x 4	1 x 2.25	0.7	1.8	4.61	243
3 x 6	1 x 2.76	0.7	1.8	3.08	315
3 x 10	1 x 3.56	0.7	1.8	1.83	495
3 x 16	1 x 4.51	0.7	1.8	1.15	712
3 x 25	7 x 2.13	0.9	1.8	0.727	1038
3 x 35	7 x 2.52	0.9	1.8	0.524	1342
3 x 50	19 x 1.83	1	1.8	0.387	1749
3 x 70	19 x 2.17	1.1	2	0.268	2451
3 x 95	19 x 2.52	1.1	2.1	0.193	3368
3 x 120	37 x 2.03	1.2	2.2	0.153	4061
3 x 150	37 x 2.27	1.4	2.3	0.124	5167
3 x 185	37 x 2.52	1.6	2.5	0.0991	6363
3 x 240	61 x 2.24	1.7	2.7	0.0754	8211
3 x 25+16	7 x 2.13	0.9	1.8	0.727	1214
3 x 35+16	7 x 2.52	0.9	1.8	0.524	1507
3 x 50+25	19 x 1.83	1	1.9	0.387	2006
3 x 70+35	19 x 2.17	1.1	2	0.268	2834
3 x 95+50	19 x 2.52	1.1	2.2	0.193	3867
3 x 120+70	37 x 2.03	1.2	2.3	0.153	4740
3 x 150+70	37 x 2.27	1.4	2.4	0.124	5766
3 x 185+95	37 x 2.52	1.6	2.6	0.0991	7258
3 x 240+120	61 x 2.24	1.7	2.8	0.0754	9271
3 x 300+150	61 x 2.50	1.8	2.9	0.0601	11471
4 x 1.5	1 x 1.38	0.7	1.8	12.1	173
4 x 2.5	1 x 1.78	0.7	1.8	7.41	224
4 x 4	1 x 2.25	0.7	1.8	4.61	292
4 x 6	1 x 2.76	0.7	1.8	3.08	382
4 x 10	1 x 3.56	0.7	1.8	1.83	612
4 x 16	1 x 4.51	0.7	1.8	1.15	889
4 x 25	7 x 2.13	0.9	1.8	0.727	1328
4 x 35	7 x 2.52	0.9	1.8	0.524	1723
4 x 50	19 x 1.83	1	1.9	0.387	2267
4 x 70	19 x 2.17	1.1	2.1	0.268	3204
4 x 95	19 x 2.52	1.1	2.2	0.193	4380
4 x 120	37 x 2.03	1.2	2.4	0.153	5306
4 x 150	37 x 2.27	1.4	2.5	0.124	6657
4 x 185	37 x 2.52	1.6	2.7	0.0991	8281
4 x 240	61 x 2.24	1.7	2.9	0.0754	10677
