3-30kV Rated Voltage Flexible Mining Rubber Cable for Semiflexible Installation German Standard DIN VDE 0250-813 Medium Voltage MV

Name: 330kV Rated Voltage Flexible Mining Rubber Cable for Semiflexible Installation German Standard DIN VDE 0250813 Medium Voltage MV
Brand: Minfeng
Price: 0.1 USD

Buy cheap 3-30kV Rated Voltage Flexible Mining Rubber Cable for Semiflexible Installation German Standard DIN VDE 0250-813 Medium Voltage MV product

Rated Voltage : 3-30kv

Model Name : F-(N)TSCGEWOEU

Corporation : Minfeng group

Place of Origin : Hebei, China

Supply Ability : 100KM/Week

Outer Sheath Material : Synthetic elastomer compound

Brand Name : Minfeng

Certification : ISO,CE,IEC,TUV,KEMA

Application : Industrial, Mining

Model Number : rubber cable

Conductor Type : Electrolytic copper

Price : 0.1-5

Delivery Time : 10 Days

MOQ : 100

Insulation material : Rubber

Payment Terms : L/C,T/T

Contact Now

3-30kV F-(N)TSCGEWOEU Flexible Mining Rubber Cable for Semiflexible Installation German Standard Medium Voltage MV

3-30kV Rated Voltage Flexible Mining Rubber Cable for Semiflexible Installation German Standard DIN VDE 0250-813 Medium Voltage MV

Product Overview

Flexible mining rubber cable designed for semiflexible installation according to German standards, suitable for medium voltage applications in demanding industrial and mining environments.

Rated Voltage	3-30kV
Conductor Material	Electrolytic copper
Insulation Material	EPR
Working Temperature	-40°C to +80°C
Jacket Material	Synthetic elastomer compound
Application	Industrial, Mining
Type	Medium Voltage
Model Number	F-(N)TSCGEWOEU
Standard	DIN VDE 0250-813

Application

For laying alongside conveyor belts (including shiftable units) and on material handling equipment. Suitable for continuous movement applications such as cable booms or connections between upper and lower cars, and for connection of submersible pump units.

Global Data

Type Designation: F-(N)TSCGEWOEU
Standard: Based on DIN VDE 0250-813
Certifications: Fire Certificate of Russian Federation, GOST -R/-K/-B

Design Features

Conductor: Electrolytic copper, not tinned, very finely stranded (class 5)
Insulation: PROTOLON, Basic material: EPR, Compound type: Special compound
Electrical Field Control: Inner and outer layer of semiconductive rubber compound
Core Identification: Natural coloring with black semiconductive rubber with white digits 1 to 3
Core Arrangement: Three main conductors laid-up, with protective-earth conductor split into 3 in outer interstices
Inner Sheath: Basic material: EPR, Compound type: Special compound
Outer Sheath: Basic material: Synthetic elastomer compound, Color: Red

Chemical Parameters

Resistance to Oil: According to DIN EN 60811-404 and DIN VDE 0473-811-404
Weather Resistance: Unrestricted use outdoors and indoors, resistant to ozone, UV and moisture
Water Resistance: According to HD 2216

Thermal Parameters

Max. Permissible Temperature at Conductor: 90°C
Max. Short Circuit Temperature: 250°C
Ambient Temperature (Fixed Installation): -50°C to +80°C
Ambient Temperature (Flexible Operation): -35°C to +80°C

Mechanical Parameters

Max. Tensile Load on Conductor: 20 N/mm²
Max. Tensile Load During Acceleration: Up to 30 N/mm²
Torsional Stress: ± 25°/m
Min. Bending Radius: According to DIN VDE 0298 part 3
Min. Distance with S-type Directional Changes: 20 x D (D = cable diameter)
Travel Speed: Gantry (reeling operation): no restriction. For speeds beyond 240 m/min

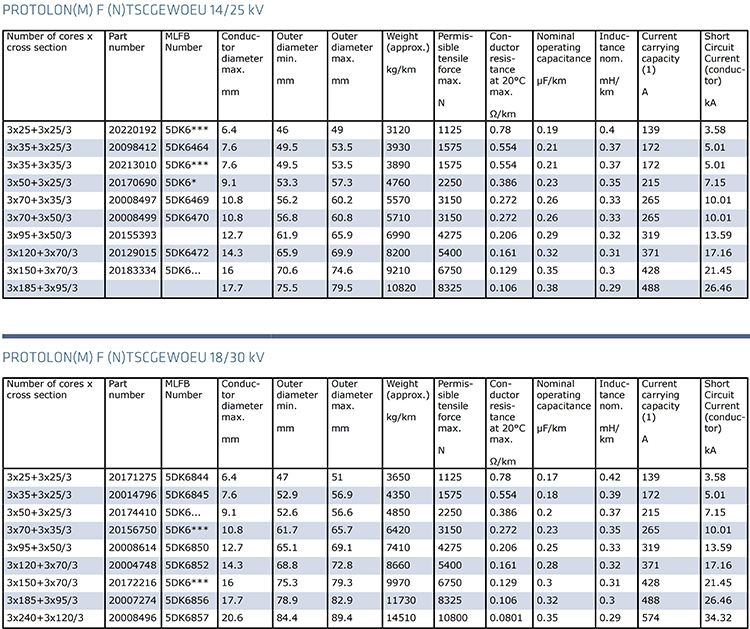

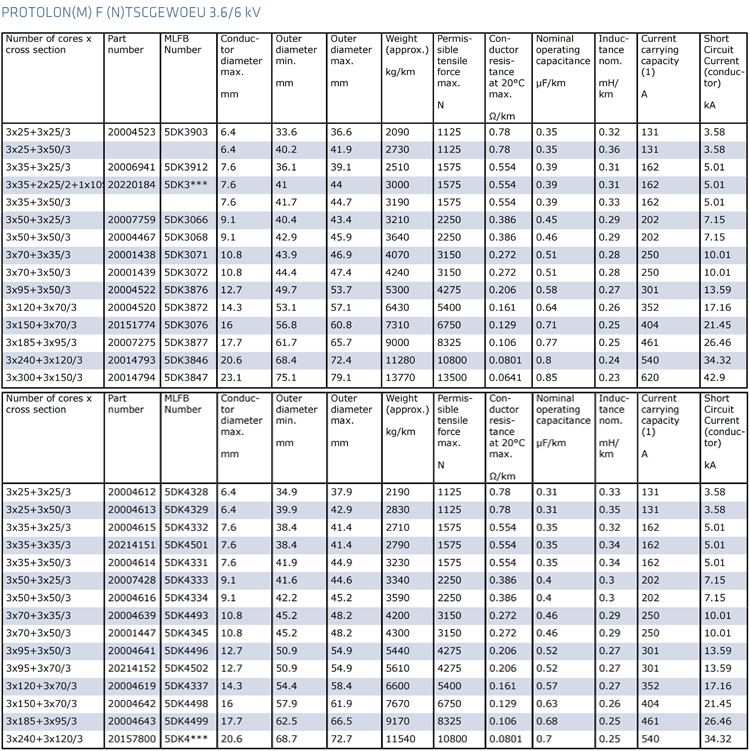

3-30kV Rated Voltage Flexible Mining Rubber Cable for Semiflexible Installation German Standard DIN VDE 0250-813 Medium Voltage MV Images
