Flame Retardant Medium Voltage Power Cable with Copper Conductor for 3.6/6kV 6/10kV Applications

  • 1
  • 2

Transport Package : Reel or Drum

Model Number : HF-CXISA (VFD) HF-CXFSA (VFD)

Standards : IEC 60228

MOQ : 100m

Supply Ability : 100KM/Week

Delivery Time : 5-8 Days

Payment Terms : L/C,T/T

Spec : HF-CXISA (VFD) HF-CXFSA (VFD)

Sheath Material : SHF 1

Range Of Application : Industrial

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

Packaging Details : Wooden Drum

Conductor : Copper

Price : 0.1-5

Installation : XLPE

Brand Name : Minfeng

Contact Now

3.6/6kV 6/10kV HF-CXISA (VFD) HF-CXFSA (VFD) Cable HF-MV Cable Flame Retardant Power Cable Copper Conductor
Product Overview

High-quality medium voltage flame retardant power cables designed for industrial applications with excellent electrical properties and safety features.

Key Specifications
Rated Voltage
3.6/6kV 6/10kV
Size Range
6-240mm²
Conductor Material
Copper
Insulation Material
XLPE
Working Temperature
-35°C
Jacket Material
SHF1
Application
Industrial
Type
Medium Voltage
Standard
IEC 60228
Cable Construction
Flame Retardant Medium Voltage Power Cable with Copper Conductor for 3.6/6kV 6/10kV Applications
Classification Construction
1. Conductor Stranded plain or tinned annealed copper as per IEC 60228, Class 2 or Class 5
2. Conductor Screen Semi-conducting compound and/or Semi-conducting tape
3. Insulation XLPE as per IEC 60092-360
4. Insulation Screen Semi-conducting compound and metallic material (tinned or plain copper -wire braid, -tape, -wire)
5. Cabling Non-hygroscopic fillers may be used
6. Inner Sheath SHF1 as per IEC 60092-360
7. Overall Screen (VFD type) A laminated electrostatic screening tape (copper/polyester tape)
8. Armour Tinned or plain annealed copper wire braid (SA)
9. Sheath SHF1 as per IEC 60092-360
Technical Standards & Properties
Property Standard
Design IEC 60092-350, IEC 60092-354
Material IEC 60092-360 XLPE, SHF1
Flame Retardant IEC 60332-1-2, IEC 60332-3-22 CAT. A
Halogen Content IEC 60754-1, 0.5% ↓
Smoke Emission IEC 61034, 60% ↑
Fluorine Content IEC 60684-2, 0.1% ↓
Cold Properties CSA C22.2 No. 0.3 (Bend: -40°C/ Impact: -35°C)

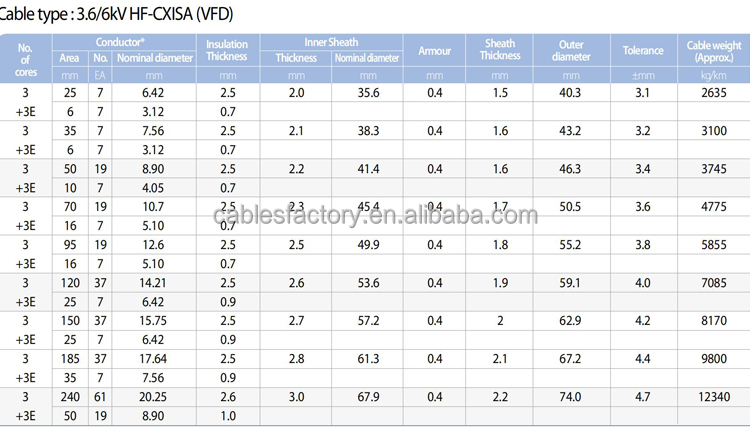

Additional Specifications
Flame Retardant Medium Voltage Power Cable with Copper Conductor for 3.6/6kV 6/10kV Applications Flame Retardant Medium Voltage Power Cable with Copper Conductor for 3.6/6kV 6/10kV Applications
