450V Flexible QWPK Rubber Cable with Tinned Copper Conductor for Harsh Conditions

Name: 450V Flexible QWPK Rubber Cable with Tinned Copper Conductor for Harsh Conditions
Brand: Minfeng
Price: 0.1 USD

Buy cheap 450V Flexible QWPK Rubber Cable with Tinned Copper Conductor for Harsh Conditions product

Standard : IEC/EN 60754-1/2

Supply Ability : 100KM/Week

Insulated : EPR Rubber

Payment Terms : L/C,T/T

Model No : QWPK Rubber Cable

MOQ : 100m

Delivery Time : 5-8 Days

Voltage : 450 V

Brand Name : Minfeng

Sheath : PUR

Certification : ISO,CE,IEC,TUV,KEMA

Price : 0.1-5

Sample : Available

Packaging Details : Wooden Drum

Origin : Hebei, China

Place of Origin : Hebei, China

Model Number : QWPK Rubber Cable

Contact Now

450V Flexible QWPK Rubber Cable for Harsh Conditions Tinned Copper Conductor

450V Flexible QWPK Rubber Cable with Tinned Copper Conductor for Harsh Conditions

450V Flexible QWPK Rubber Cable for Harsh Conditions Tinned Copper Conductor

Application: QWPK 300V is a flexible cable designed for harsh conditions. The cable is mainly used in workshops and garages, on construction sites, and as a tool-connection cable. The cable is also suitable for use in the ground (ground spots), in water, for submersible pumps, and as an extension cable. The cable is mainly used in OEM, road construction infrastructure, and for temporary or mobile installations.

The polyurethane (PUR) outer sheath guarantees strong mechanical properties and a long service life, even in harsh conditions. The ribbed sheath reduces frictional resistance when being dragged over a surface. It can also be used outdoors thanks to its UV resistance. The cable is also water and cold resistant. Installation is easy and the cable can be rolled on a spool thanks to the very flexible conductor (Class 5). The cable is halogen-free and limits damage caused by smoke and gases in case of fire.

Key Specifications

Rated Voltage 450 V

Size 1.5-6mm²

Conductor Material Copper

Insulation Material EPR

Working Temperature -40℃ to 90℃

Jacket PUR

Application Industrial

Type Low Voltage

Standard IEC/EN 60754-1/2

Certifications and Design Standards

Conductor material: Copper
Conductor surface: Tinned
Core insulation material: EPR rubber
Core identification (acc. HD 308 S2): Yes
Material outer sheath: Polyurethane (PUR)
Max. conductor temperature: 90°C
Permitted cable outer temperature after assembling without vibration (min): -40°C
Permitted cable outer temperature during assembling/handling (min): -40°C
Halogen free acc. IEC/EN 60754-1/2: Yes

Technical Specifications

Basic Construction	Nominal Outer Diameter [mm]	Cable Weight [kg/km]	Conductor Resistance at 20°C [Ohm/km]	Current Carrying Capacity in Air [A]
2X1.5	8.6	106	13.7	22
2X2.5	10.1	152	8.21	35
3G1.5	9.1	124	13.7	22
3G2.5	10.7	180	8.21	35
3G4	12.5	258	5.09	48
4G1.5	10.1	153	13.7	19
4G2.5	11.9	222	8.21	31
4G4	13.8	321	5.09	41
5G1.5	11	182	13.7	19
5G2.5	13.2	271	8.21	31
5G4	15.4	389	5.09	41
5G6	17.2	519	3.39	50

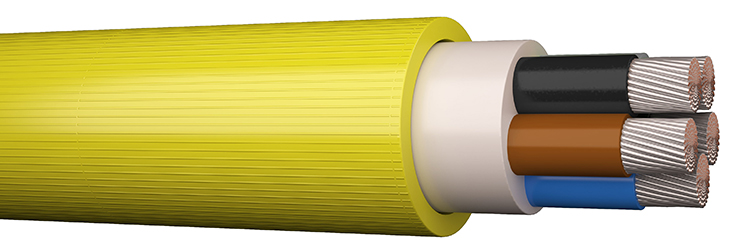

450V Flexible QWPK Rubber Cable with Tinned Copper Conductor for Harsh Conditions Images
