SANS Type 611 622 633 Mining Cable with Tinned Copper Conductor EPR Insulation and CR Sheath for Industrial Applications

Name: SANS Type 611 622 633 Mining Cable with Tinned Copper Conductor EPR Insulation and CR Sheath for Industrial Applications
Brand: Minfeng
Price: 0.1 USD

Buy cheap SANS Type 611 622 633 Mining Cable with Tinned Copper Conductor EPR Insulation and CR Sheath for Industrial Applications product

MOQ : 100

Delivery Time : 10 Days

Certification : ISO,CE,IEC,TUV,KEMA

Supply Ability : 100KM/Week

Brand Name : Minfeng

Payment Terms : L/C,T/T

Voltage Rate : 600V

Insulation : EPR

Model Number : rubber cable

Manufacturer : Minfeng Cable Group

Place of Origin : Hebei, China

Price : 0.1-5

Conductor Material : Tinned Copper

Origin : Hebei, China

Model Name : Type 611 622 633 Mining Cable

Temperature Rating : -25°C to +90°C

Sheath Material : CR (Polychloroprene Rubber)

Port : Shanghai Port

Contact Now

SANS Type 611 622 633 ECC 6.35/11 KV 12.7/22 KV 19/33 KV Mining Cable

Product Overview

High-performance mining cable designed for electrically driven machines and portable electric apparatus in hazardous areas, suitable for reeling purposes and various industrial applications.

Technical Specifications

Rated Voltage	6.35/11 kV, 12.7/22 kV, 19/33 kV
Conductor Material	Tinned Copper
Insulation Material	EPR (Ethylene Propylene Rubber)
Working Temperature	-25°C to +90°C
Jacket/Sheath	CR (Polychloroprene Rubber)
Application	Industrial, Mining
Type	Medium Voltage
Standard	SANS 1520-2, SANS 1411-1, SANS 1411-3
Model Number	Type 611 622 633
Brand Name	Minfeng
Place of Origin	Hebei, China

Applications

Electrically driven machines and movable electric apparatus in hazardous areas
Portable electric apparatus and section feeders
Open cast mining operations
Medium-sized draglines, shovels, and drills
Suitable for reeling purposes
Various industrial applications

Key Characteristics

Voltage Rating: Uo/U 6.35/11 kV, 12.7/22 kV, 19/33 kV
Temperature Rating: -25°C to +90°C
Minimum Bending Radius: 9 x Overall Diameter

Cable Construction

Conductor: Class 5 flexible stranded tinned annealed Copper
Insulation: EPR (Ethylene Propylene Rubber) thermosetting compound with strippable semi-conducting core screen (triple extruded)
Braid: Nylon/Tinned copper wires
Pilot Cores: Insulated with EPM (Ethylene Propylene Monomer)
Lay: Each power core individually screened with tinned copper/textile braid, laid up three insulated pilot cores
ECC Variant: One pilot core replaced with tinned conductor
Inner Sheath: CR (Polychloroprene Rubber)
Reinforcement Braid: Open nylon braid - minimum 16 strings
Outer Sheath: CR (Polychloroprene Rubber)

Compliance Standards

SANS 1520-2, SANS 1411-1, SANS 1411-3

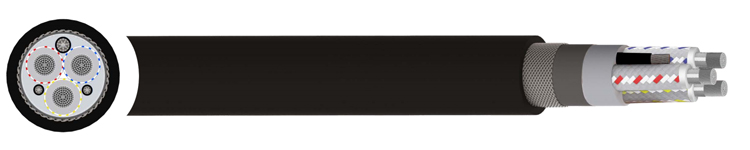

Product Images

SANS Type 611 622 633 Mining Cable with Tinned Copper Conductor EPR Insulation and CR Sheath for Industrial Applications

SANS Type 611 622 633 Mining Cable with Tinned Copper Conductor EPR Insulation and CR Sheath for Industrial Applications Images
