Medium Voltage Power Cable with XLPE Insulation and Copper/Aluminium Conductor for 3.6/6kV to 18/30kV Applications

  • 1
  • 2

Jacket Material : PVC

Voltage : 3.6/6 (7.2)kV 6/10 (12)kV 8.7/15 (17.5)kV 12/20 (24)kV 18/30 (36)kV

MOQ : 100

Core Number : 1 core

Minimum Order : 100 M

Cable Color : Black

Transport Package : Wooden Steel Drum

Temperature range : -40°C to +90°C

Price : 0.1-5

Payment Terms : L/C,T/T

Application : Power distribution and transmission

Brand Name : Minfeng

Standard : IEC 60228, IEC 60502-2 Flame Retardant to IEC 60332-1-2

Model Number : armored cable

Certification : ISO,CE,IEC,TUV,KEMA

Model Name : LXHIO1AV Cable

Supply Ability : 100KM/Week

Armoured Type : STA

Place of Origin : Hebei, China

Contact Now

LXHIO1AV Medium Voltage Cable
Product Overview

Medium Voltage Cable for power distribution and power supply stations used in Utility and Industrial applications, with rated voltages from 3.6/6kV to 18/30kV. Suitable for fixed installations including directly buried applications with good mechanical protection.

Key Specifications
Rated Voltage
3.6/6 (7.2)kV to 18/30 (36)kV
Conductor Size
25-630mm²
Conductor Material
Copper/Aluminium
Insulation Material
XLPE
Working Temperature
90°C
Jacket Material
PVC
Application
Industrial
Standards
IEC 60228, IEC 60502-2, IEC 60332-1-2
Technical Characteristics
  • Voltage Rating: Uo/U (Um) 3.6/6 (7.2)kV, 6/10 (12)kV, 8.7/15 (17.5)kV, 12/20 (24)kV, 18/30 (36)kV
  • Temperature Rating: Conductor maximum operating temperature: 90°C | Maximum short-circuit temperature: 250°C
  • Minimum Bending Radius: During installation: 20 x overall diameter | After installation: 15 x overall diameter

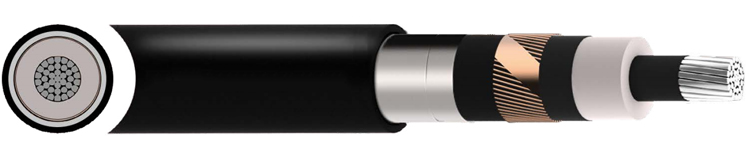

Cable Construction
  • Conductor: Class 2 stranded Aluminium | Class 2 stranded Copper
  • Conductor Screen: Semi-conductive XLPE
  • Insulation: XLPE (Cross-Linked Polyethylene)
  • Insulation Screen: Semi-conductive XLPE
  • Metallic Screen: Copper wire screen
  • Inner Sheath: PVC (Polyvinyl Chloride)
  • Armour: Two aluminium tapes helically applied
  • Sheath: PVC (Polyvinyl Chloride) type ST2
Technical Specifications
Medium Voltage Power Cable with XLPE Insulation and Copper/Aluminium Conductor for 3.6/6kV to 18/30kV Applications
No. of Cores Nominal Cross Sectional Area mm² Nominal Diameter mm Over Insulation Nominal Diameter mm Overall Nominal Weight kg/km
13514.026.51080
15015.027.51230
17016.529.51470
19518.531.01760
112020.032.52035
115021.034.02325
118522.535.52700
124025.538.53340
130028.542.04050
140032.045.55045
150035.549.06070
163041.053.07775
Medium Voltage Power Cable with XLPE Insulation and Copper/Aluminium Conductor for 3.6/6kV to 18/30kV Applications
No. of Cores Nominal Cross Sectional Area mm² Nominal Diameter mm Over Insulation Nominal Diameter mm Overall Nominal Weight kg/km
12512.525.5810
13513.526.5870
15015.027.5940
17016.529.01050
19518.031.01180
112020.032.51315
115021.034.01450
118522.535.51605
124025.538.51875
130028.542.02190
140032.045.52595
150035.049.03035
163040.054.03690
