Armoured Type K Compensation Cable IEC 60584 Compliant with Flexible Copper Conductor for Mechanical Protection

  • 1
  • 2
  • 3

Packaging Details : Wooden Drum

Product name : Type K Thermocouples cable

Supply Ability : 100KM/Week

Operating Temp : -55°C +200°C, -5°C + 70°C

Insulation : Silicone rubber/PVC

Brand Name : Minfeng

Price : 0.1-5

Model Number : Type K Thermocouples cable

Cable Sample : Available

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

Payment Terms : L/C,T/T

Standard compliance : IEC 60584

MOQ : 100m

Sheath material : PVC or PE

Delivery Time : 5-8 Days

Contact Now

Armoured Type Kca Compensation Cable Type K Compensating Cable for Type K Thermocouples
Armoured Type K Compensation Cable IEC 60584 Compliant with Flexible Copper Conductor for Mechanical Protection Armoured Type K Compensation Cable IEC 60584 Compliant with Flexible Copper Conductor for Mechanical Protection
Product Overview

Armoured Type Kca compensation cable specifically designed for Type K Thermocouples. This cable provides excellent mechanical protection and resistance against rodent damage, making it ideal for demanding industrial applications.

Key Specifications
Attribute Specification
Type Insulated
Rated Voltage 1000 Vcc
Conductor Material Copper
Insulation Material Silicone rubber/PVC
Working Temperature -55°C to +200°C, -5°C to +70°C
Conductor Type Flexible
Application Industrial, Building, Heating
Model Number Type K
Standard IEC 60584

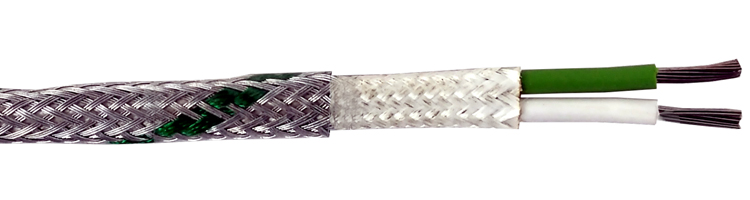

Construction Details
  • Conductor: Flexible (16x0.32mm) with cross-sectional area: 1.30mm²
  • Materials: (+) Fe (Iron), (-) Copper-Nickel (Constantan)
  • Insulation: PVC or Silicone rubber with diameter: 2.60mm approx.
  • Identification: (+) Green, (-) White
  • Assembly: Conductors in parallel with outer sheath PVC
  • Bedding: Impregnated (vinilic varnish) fibre glass braid (White)
  • Armour: Galvanized iron wire braid with 0.24mm wire diameter
Technical Characteristics
  • Operating Temperature: -55°C to +200°C
  • Conductor Resistance: Approximately 490 Ohm/Km (loop) at 20°C
  • Tolerance (e.m.f): Class 2: ±100 µV (±2.5°C)
  • Test Voltage: 1000 Vcc (conductor-conductor), 1000 Vcc (conductor-armour)
  • Insulation Resistance: >20 MOhm at 20°C
Compliance Standards
  • Reference standards: IEC 60584
  • Flame Retardant: IEC 60332-1
  • Halogen free: IEC 60754-1
Product Specifications
NxS (mm²) Dimensions (mm) Weight (kg/km)
2x1.30 6.80 x 4.20 57
2x1.30 6.6 x 4.6 75
Application Note: Specially recommended when good mechanical protection and/or protection against rodent damage is required in industrial environments.
