YnHKGSLY Signal Mining Cable with Tin-plated Copper Wire Screen Non-flammable PVC Sheath 150/250V 300/500V 0.6/1KV

Name: YnHKGSLY Signal Mining Cable with Tinplated Copper Wire Screen Nonflammable PVC Sheath 150250V 300500V 061KV
Brand: Minfeng
Price: 0.1 USD

Buy cheap YnHKGSLY Signal Mining Cable with Tin-plated Copper Wire Screen Non-flammable PVC Sheath 150/250V 300/500V 0.6/1KV product

Certification : ISO,CE,IEC,TUV,KEMA

Temperature : -40°C to 70°C

Brand Name : Minfeng

MOQ : 100

Keywords : Mining Cable

Place of Origin : Hebei, China

Voltagerating : 150/250V 300/500V 0.6/1KV

Conductor material : cooper, multi-stranded class 5 acc. PN-EN 60228

Supply Ability : 100KM/Week

Hs Code : 8544492100

Payment Terms : L/C,T/T

Model Number : YnHKGSLY

Delivery Time : 10 Days

Price : 0.1-5

Sheath Material : special, non-flammable PVC

Contact Now

150/250V 300/500V 0.6/1KV PVC YnHKGSLY Signal Tin-plated Copper Wire Screen Mining Cable

Mining signal cable with copper, multistranded, PVC insulated conductors, individual conductor screening, PVC sheath with increased flame propagation resistance.

Product Specifications

Rated Voltage	150/250V 300/500V 0.6/1 kV
Size	9.5-38.2mm
Conductor Material	Copper
Insulation Material	Special PVC
Working Temperature	-40°C to 70°C
Jacket	PVC
Application	Industrial
Type	Low Voltage
Model Number	YnHKGSLY
Standard	PN-EN 60228

Technical Data

Operating temperature: -40°C to 70°C
Minimum installation temperature: -5°C
Operating voltage: 150/250V, 300/500V, 0.6/1 kV
Test voltage: 1.5 kV for 150/250V, 2.0 kV for 300/500V, 3.5 kV for 0.6/1 kV
Minimum bending radius: 10 x Ø

Cable Construction

Conductors: Copper, multi-stranded class 5 according to PN-EN 60228
Insulation: Special PVC
Conductor marking: Natural or black with digit print; yellow-green conductor in the outer layer
Conductor screen: Tin-plated copper wire braid
Outer sheath: Special, non-flammable PVC preventing flame propagation (tested according to PN-EN 60332-1 and PN-EN 60332-3-24, IEC 60332-3), oxygen index > 29
Sheath color: Grey for 150/250V, 300/500V; Yellow for 0.6/1 kV

Application

Cables intended for supplying and controlling power control, safety and control systems in strip, open-pit and underground mines, out of areas with the risk of explosion, and in areas with methane explosion hazard class "a", "b" or "c", and in excavation sites categorized as class "A" or "B" coal dust explosion hazard.

Sample cable marking: YnHKGSLY 9x1.5+1.5mm² 0.6/1 kV - 10-conductor cable, nominal power and protective conductor cross section: 1.5 mm², voltage rating: 0.6/1 kV

Product Images

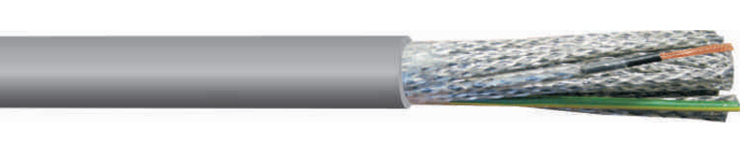

YnHKGSLY Signal Mining Cable with Tin-plated Copper Wire Screen Non-flammable PVC Sheath 150/250V 300/500V 0.6/1KV

YnHKGSLY Signal Mining Cable with Tin-plated Copper Wire Screen Non-flammable PVC Sheath 150/250V 300/500V 0.6/1KV Images
