36KV 185mm2 ABC Overhead Cable XLPE Insulated Aerial Bundled Cable For Construction

Brand Name : Minfeng

Model Number : ABC Cable

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

MOQ : 100

Price : 0.1-5

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Range Of Application : Overhead

Wire Core Material : Aluminium

Sample : Freely Supplied

Product Time : 10days

Model No : ABC

Quality : top

Contact Now

36KV Single Core 185mm² ACSR/AW-OC XLPE Insulated Overhead Cable
Product Overview

Aerial bundled cables designed for secondary overhead lines on poles or as feeders to residential premises, featuring XLPE insulation and robust construction.

Key Specifications
Conductor Material Aluminum
Insulation Material XLPE
Application Construction
Type Medium Voltage
Standard IEC 60502
Rated Voltage 11KV
Conductor Screen Extruded semi-conductive layer
Sheathed HDPE
Package Wooden drum
Construction Details
  • Phase Conductor: Circular compacted stranded H68 aluminium to BS2627
  • Conductor Screen: Extruded semi-conductive layer
  • Insulation: XLPE
  • Insulation Screen: Extruded semi-conductive layer
  • Metallic Screen (optional): Copper wire screen or copper tape screen
  • Separator: Semi-conductive swellable tape
  • Outer Sheath: HDPE
  • Support Conductor: Galvanized steel wires
  • Assembly: Three XLPE insulated screened cores bundled around galvanized steel wires in right hand lay
Technical Parameters - IEC 60502 6.35/11 kV ABC
Number of Cores x Nominal Cross Section Phase Conductor Stranding Nominal Sectional Area (mm²) Maximum Conductor Resistance (Ω/Km) Messenger Suspension Unit Stranding Nominal Sectional Area (mm²) Breaking Load (KN) Continuous Current Rating at 30°C (A)
3X50 + 1X25 19/1.78 50 0.641 7/3.0 50 60 116
3X70 + 1X50 19/2.14 70 0.443 7/3.15 50 62 210
3X95 + 1X50 19/2.52 95 0.32 7/3.0 50 60 173
3X185 + 1X120 37/2.52 185 0.164 7/4.67 120 150 259
3X150 + 1X50 37/2.25 150 0.206 7/3.15 50 62 365
3X240 + 1X50 61/2.25 240 0.125 7/3.15 50 62 500
Technical Parameters - IEC 60502 19/33 kV ABC
Number of Cores x Nominal Cross Section Phase Conductor Stranding Nominal Sectional Area (mm²) Maximum Conductor Resistance (Ω/Km) Messenger Suspension Unit Stranding Nominal Sectional Area (mm²) Breaking Load (KN) Continuous Current Rating at 30°C (A)
3X50 + 1X50 19/1.78 50 0.641 7/3.0 50 60 165
3X150 + 1X50 37/2.25 150 0.206 7/3.0 50 60 315
3X185 + 1X70 37/2.52 185 0.164 7/3.57 70 91 355
3X70 + 1X50 19/2.14 70 0.443 7/3.15 50 62 250
3X150 + 1X50 37/2.25 150 0.206 7/3.15 50 62 370

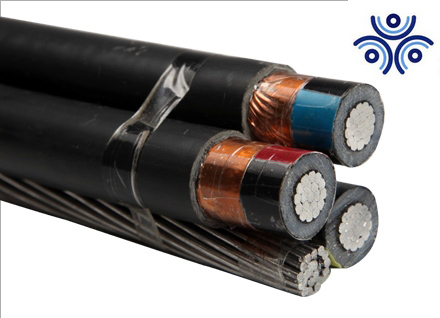

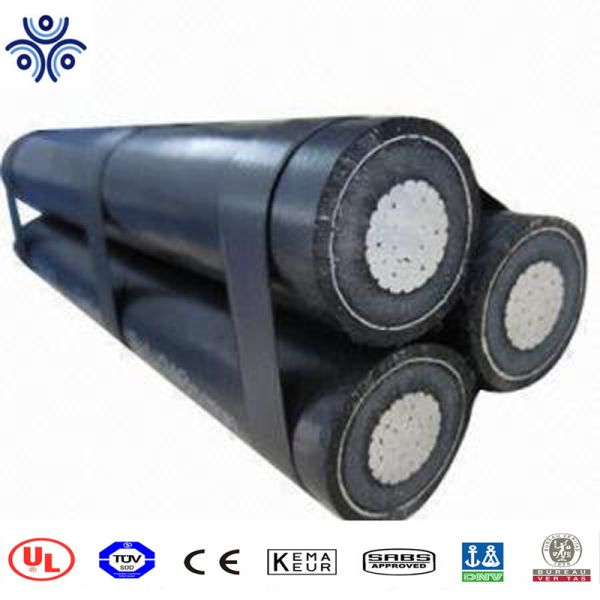

36KV 185mm2 ABC Overhead Cable XLPE Insulated Aerial Bundled Cable For Construction 36KV 185mm2 ABC Overhead Cable XLPE Insulated Aerial Bundled Cable For Construction
