BTTZ Mineral Insulated 0.6/1kV 1.8/3kV Fire Resistant Power Cable With Fire Survival +950°C

MOQ : 100

Supply Ability : 100KM/Week

Payment Terms : L/C,T/T

Size : 1.5-800mm2

Hs Code : 8544492100

Jacket Color : Orange or optional

Origin : China

Color : Orange

Price : 0.1-5

Sheathmaterial : LSZH (Low Smoke Zero Halogen)

Flameretardant : Yes

Outerdiameter : Varies by size

Brand Name : Minfeng

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

Model Number : BBTZ

Delivery Time : 10 Days

Contact Now

Heat Resistance 1-4C Rigid BTTZ Fire Resistant Power Cable
Product Overview

BBTZ/BBTQ cables are rigid, mineral-insulated fire-resistant cables designed for critical circuits requiring exceptional fire resistance, mechanical strength, and long-term reliability. Compliant with GB/T 13033 and international standards, they ensure uninterrupted power supply in extreme conditions, making them ideal for high-risk environments such as high-rise buildings, industrial plants, and public infrastructure.

Key Specifications
  • Standard Compliance: GB/T 13033, IEC 60331, BS 6387 (Category A)
  • Rated Voltage: 0.6/1kV, 1.8/3kV
  • Conductor: Solid or Stranded Copper
  • Insulation: Magnesium Oxide (Compacted Mineral)
  • Outer Sheath: Seamless Copper Tube
  • Temperature Range: Operational: -40°C to +250°C
  • Fire Survival: +950°C for 180 minutes (BS 6387 Certified)
  • Fire Performance: Non-flammable, zero halogen, low smoke (IEC 60754)
Core Section Configuration
Core Section (mm²) 1 Core 2 Cores 3 Cores 4 Cores 5 Cores
1.5
2.51 x 2.52 x 2.53 x 2.54 x 2.55 x 2.5
41 x 42 x 43 x 44 x 45 x 4
61 x 62 x 63 x 64 x 65 x 6
101 x 102 x 103 x 104 x 105 x 10
161 x 162 x 163 x 164 x 165 x 16
251 x 251 x 261 x 271 x 281 x 29
351 x 352 x 353 x 354 x 355 x 35
501 x 502 x 503 x 504 x 505 x 50
701 x 702 x 703 x 704 x 705 x 70
951 x 952 x 953 x 954 x 955 x 95
1201 x 1202 x 1203 x 1204 x 1205 x 120
1501 x 1502 x 1503 x 1504 x 1505 x 150
1851 x 1852 x 1853 x 1854 x 1855 x 185
2401 x 240
3001 x 300
4001 x 400
5001 x 500
6301 x 630

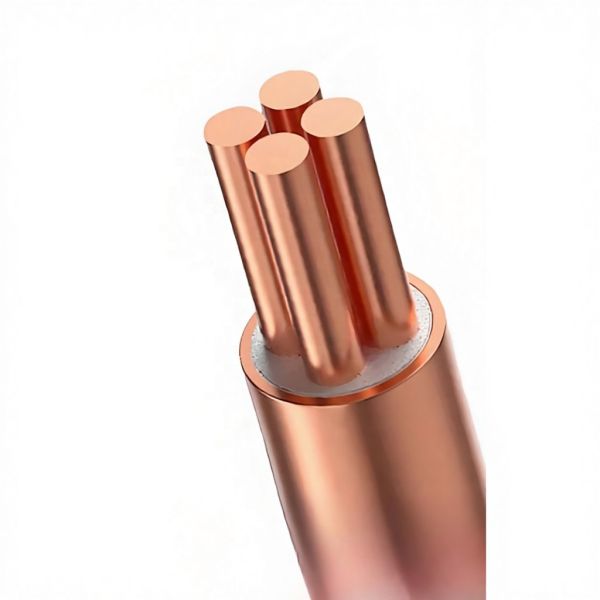

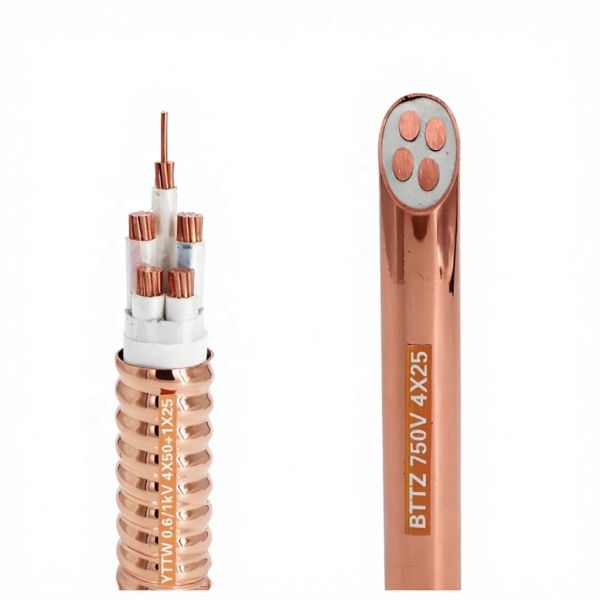

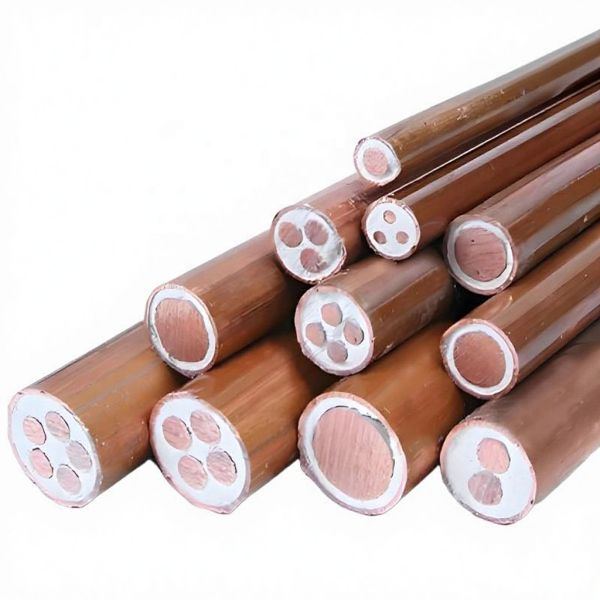

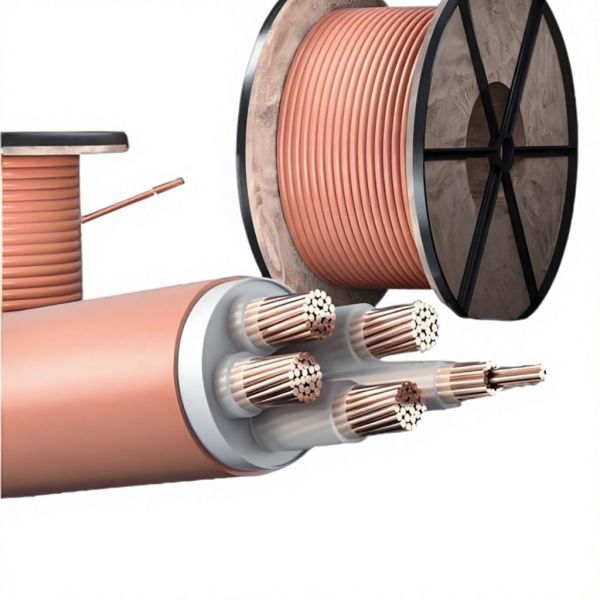

Product Images
BTTZ Mineral Insulated 0.6/1kV 1.8/3kV Fire Resistant Power Cable With Fire Survival +950°C BTTZ Mineral Insulated 0.6/1kV 1.8/3kV Fire Resistant Power Cable With Fire Survival +950°C BTTZ Mineral Insulated 0.6/1kV 1.8/3kV Fire Resistant Power Cable With Fire Survival +950°C BTTZ Mineral Insulated 0.6/1kV 1.8/3kV Fire Resistant Power Cable With Fire Survival +950°C BTTZ Mineral Insulated 0.6/1kV 1.8/3kV Fire Resistant Power Cable With Fire Survival +950°C
