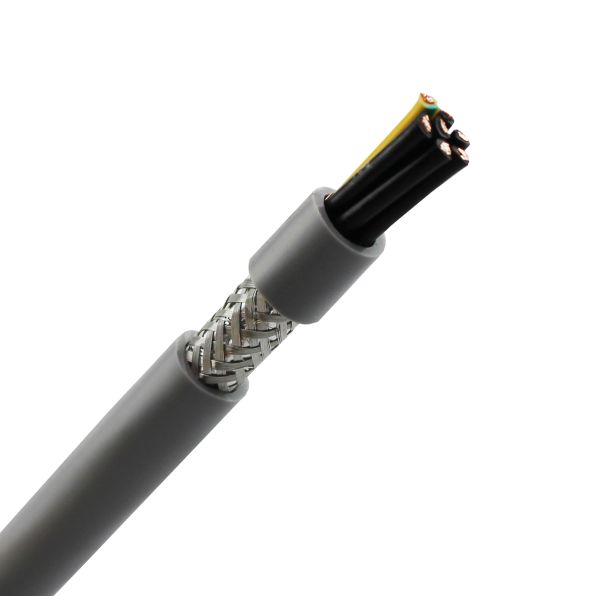

YY Flexible Control Cables 18AWG BC Conductors PVC Insulation 300V / 500V Voltage Rating

Brand Name : Minfeng

Model Number : control cable

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

MOQ : 100

Price : 0.1-5

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Corporation : Minfeng cable group

Cabletype : Control Cable

Sample : Available

Type : Low Voltage, KVV/KVVP/KVVR/KYJV

Conductor Shape : Round

Outerjacketmaterial : PVC / Polyethylene / Nylon

Application : Automotive, Marine, Industrial machinery

Material Shape : Round Wire

Contact Now

YY Flexible Control Cable 2C 3C 4C 5C 7C 12C 18AWG BC PVC Insulation PVC Jkt
Product Overview

YY control cable featuring flexible class 5 copper conductors with PVC insulation and PVC/LSZH jacket. Designed for industrial control applications with excellent flexibility and durability.

Key Specifications
Type: Control cable
Conductor Material: Copper
Conductor Type: Stranded
Model Number: YY
Standard: VDE
Conductor Size: 18AWG BC
Insulation: PVC
Jacket: PVC/LSZH
Color: Gray or customized
Length: 100/200/300m
Certification: CE/RoHS/ISO9001/Reach
Technical Characteristics
  • Voltage rating: 300/500V
  • Temperature rating: Flexing: -15℃ to 70℃ | Static: -35℃ to 70℃
  • Minimum bending radius: 6 x overall diameter
  • Core identification: Black with white numbers (3 core and above include Green/Yellow)
  • Customized colored cores available
Detailed Specifications
Number of Cores Cross Section Area (mm²) Strands (#/mm) Overall Diameter (mm) Weight (KG/KM)
2 0.75 24/0.2 5.7 48
3 0.75 24/0.2 5.9 53
4 0.75 24/0.2 6.2 65
5 0.75 24/0.2 7.0 77
7 0.75 24/0.2 7.3 95
12 0.75 24/0.2 9.5 155
25 0.75 24/0.2 13.2 305
Product Images
YY Flexible Control Cables 18AWG BC Conductors PVC Insulation 300V / 500V Voltage Rating YY Flexible Control Cables 18AWG BC Conductors PVC Insulation 300V / 500V Voltage Rating YY Flexible Control Cables 18AWG BC Conductors PVC Insulation 300V / 500V Voltage Rating
