16mm2 - 1437mm2 Low Voltage Bare Conductor ACSR Aluminium Conductor Steel Reinforced

Brand Name : Minfeng

Model Number : ACSR

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

MOQ : 100

Price : 0.1-5

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Exoprt Experience : South America, Africa, Middle East Ect

Conductor Shape : Circular

Free Sample : yes

Insulating Material : Bare

Cores No : 1-36

Application : Power Transmission

Material Of Conductor : Aluminium

Contact Now

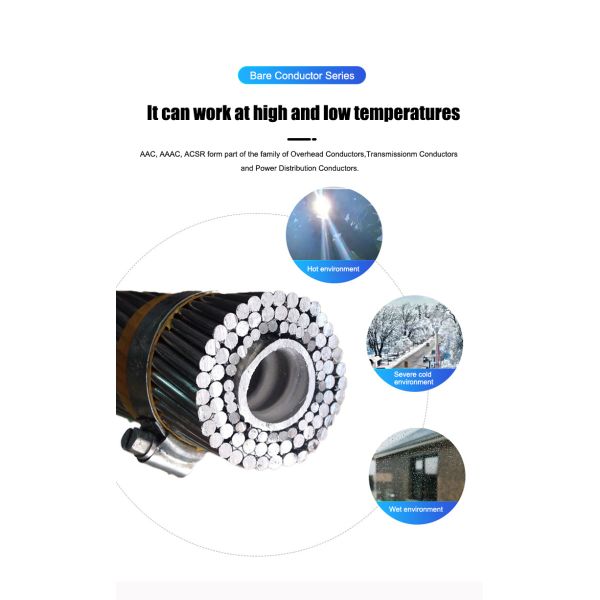

Bare Conductor Aluminum Conductor Steel Reinforced (ACSR) Conductor Overhead Transmission Line
Product Overview

ACSR Bare Conductor is designed for overhead transmission lines with simple structure, easy installation, low line cost, large transmission capacity, and suitability for special geographical conditions such as crossing rivers and valleys.

Key Specifications
Rated Voltage 1 kV
Size 16mm², 25mm², 35mm²
Conductor Material Aluminum
Working Temperature 70°C
Rated Current 16 A
Type Low Voltage
Core 1
Color Silver
Certificate CCC ISO CE
Place of Origin Hebei, China

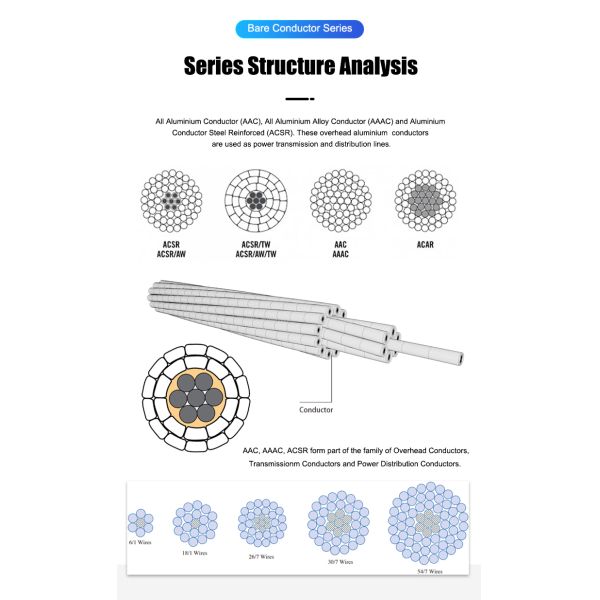

AAC - All Aluminium Conductor

All Aluminium Conductor (AAC) is made up of one or more strands of hard drawn 1350 aluminum alloy, used as bare overhead conductor for distribution lines. Extensive use in urban areas where spans are usually short but high conductivity is required.

Code Name Total Area Stranding and Wire Diameter Approximate Overall Diameter Linear Mass Nominal Breaking Load Maximum Resistance at 20℃
Peachbel 6 7/1.554 4.67 37 249 2.1692
Rose 4 7/1.961 5.89 58 396 1.3624
Iris 2 7/2.474 7.24 93 597 0.8577
Pansy 1 7/2.776 8.33 117 732 0.6801
16mm2 - 1437mm2 Low Voltage Bare Conductor ACSR Aluminium Conductor Steel Reinforced

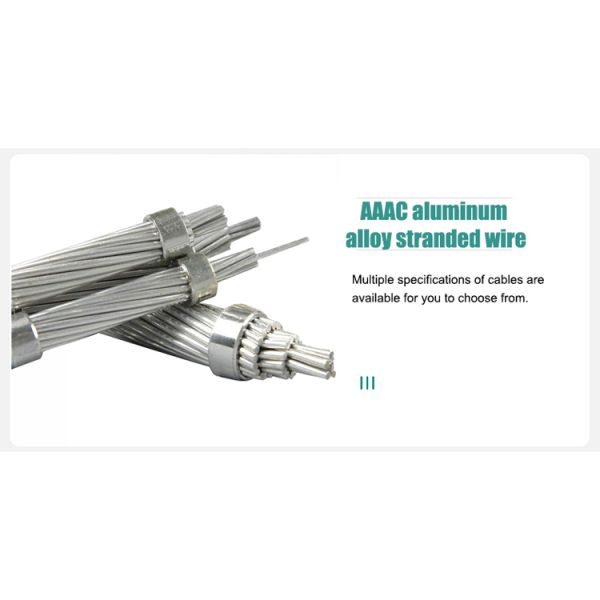

AAAC - Aluminum Alloy Conductor

AAAC aluminum alloy conductor is 1% higher conductivity than steel core aluminum stranded wire of the same cross-section, without power loss. Widely used in overhead power distribution and transmission lines, especially near ocean coastlines.

Code Word Conductor Size Stranding Sectional Area Diameter of Conductor Linear Density Rated Strength D.C. Resistance at 20°C
Box 15 7/1.85 18.82 5.55 51 537 1.5370
Acacia 20 7/2.08 23.79 6.24 65 680 1.3840
Almond 25 7/2.34 30.1 7.02 82 861 1.0934
16mm2 - 1437mm2 Low Voltage Bare Conductor ACSR Aluminium Conductor Steel Reinforced

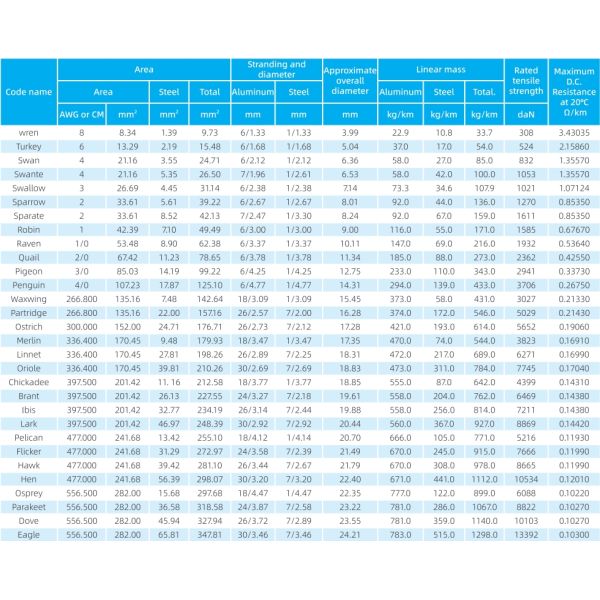

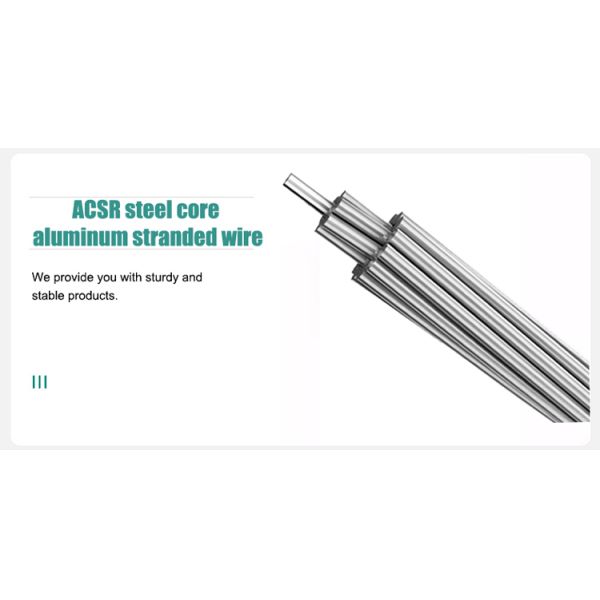

ACSR - Steel Core Aluminum Conductor

ACSR Conductor Steel core aluminum stranded wire features simple structure, easy installation and maintenance, low line cost, large transmission capacity, and suitability for special geographical conditions. Widely used in overhead transmission and distribution lines of various voltage levels.

16mm2 - 1437mm2 Low Voltage Bare Conductor ACSR Aluminium Conductor Steel Reinforced 16mm2 - 1437mm2 Low Voltage Bare Conductor ACSR Aluminium Conductor Steel Reinforced 16mm2 - 1437mm2 Low Voltage Bare Conductor ACSR Aluminium Conductor Steel Reinforced 16mm2 - 1437mm2 Low Voltage Bare Conductor ACSR Aluminium Conductor Steel Reinforced
