Multipair Shielded Instrument Cable XLPE PVC SWA Armored Cable For Industrial Control

Name: Multipair Shielded Instrument Cable XLPE PVC SWA Armored Cable For Industrial Control
Brand: Minfeng
Price: 0.1 USD

Buy cheap Multipair Shielded Instrument Cable XLPE PVC SWA Armored Cable For Industrial Control product

Brand Name : Minfeng

Model Number : Shielded Cable

Certification : ISO,CE,IEC,TUV,KEMA

Place of Origin : Hebei, China

MOQ : 100

Price : 0.1-5

Payment Terms : L/C,T/T

Supply Ability : 100KM/Week

Delivery Time : 10 Days

Shieldtype : Foil and Braid

Jacketcolor : Black or custom

Outer Sheath Color : as required

Packing : 500m/Reel

Sample : Available

Shipping : by Container

Conductor : Copper Conductor

Voltage : 300/500V 450/750V

Contact Now

Multipair XLPE PVC Individual Overall Shielded Screened Swa Armored Instrument Cable

Product Overview

1 to 61 Twisted Pair Multipair XLPE PVC Individual Overall Shielded Screened Swa Armored Instrument Cable designed for communication and control signals in various installation types including petrochemical industry applications.

Key Specifications

Shielding

Braid

Conductor Material

Copper

Insulation Material

XLPE

Jacket

PVC

Voltage

300/500V 450/750V

Pairs

1-61 Pairs

Standard

IEC 60228 or BS 6360

Warranty

1 Year

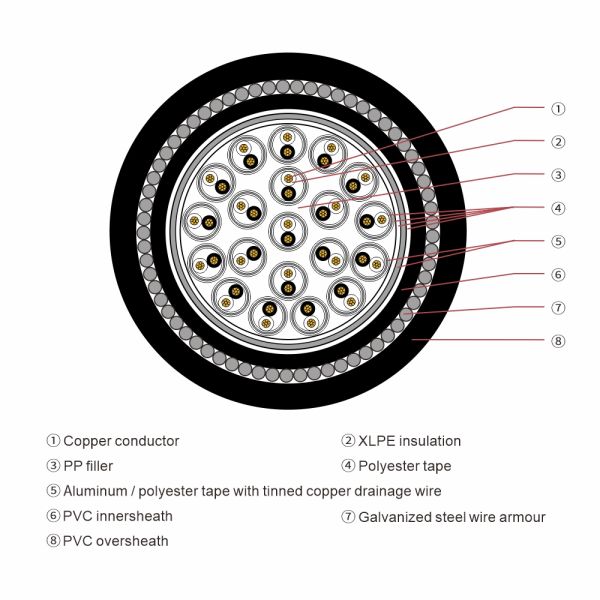

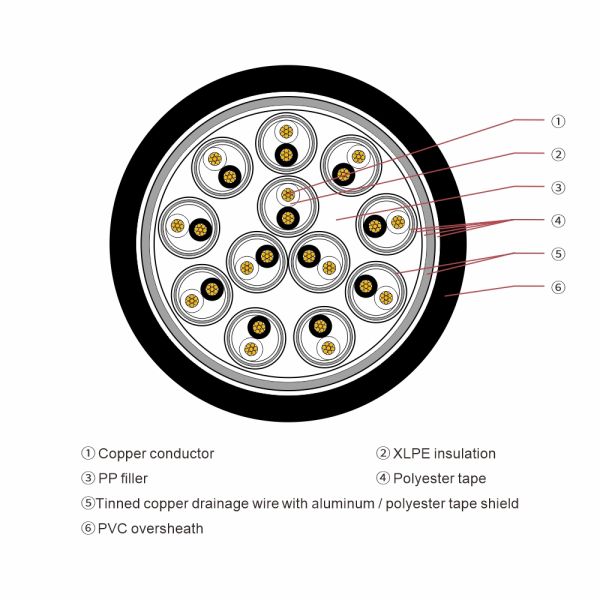

Construction Details

Conductor: Stranded copper conductor
Insulation: PE/XLPE/PVC
Armoring: Galvanized steel wire or others
Sheath: PVC (polyvinyl chloride)
Pairing: Two insulated cores uniformly twisted together to form a pair with maximum lay length of 100mm
Overall Screening: Accumulated pairs screened with aluminum/mytar tape, helically applied with metallic side down in electrical contact with tinned annealed copper drain wire 0.5mm²
Individual Screening: Each pair screened with aluminum/mytar tape, helically applied with metallic side down in electrical contact with tinned annealed copper drain wire 0.5mm²
Cabling: Twisted pairs laid up together, filled with non-hygroscopic material compatible with insulation when necessary

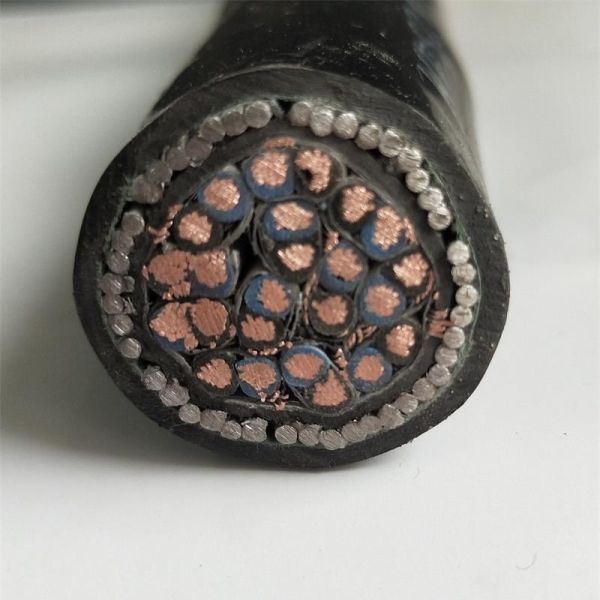

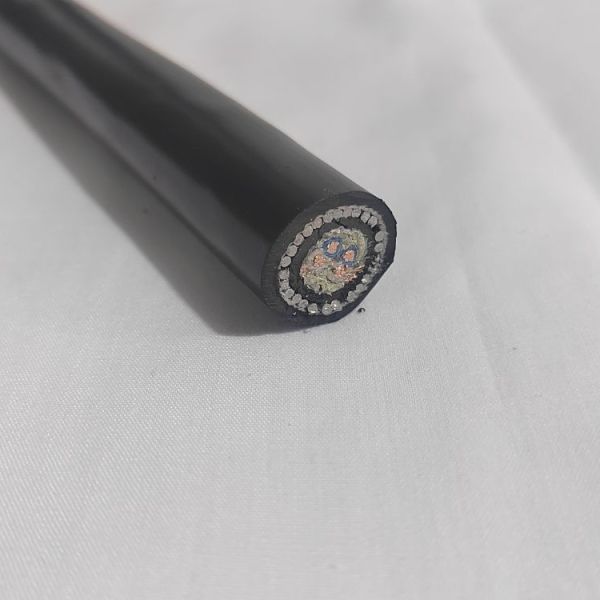

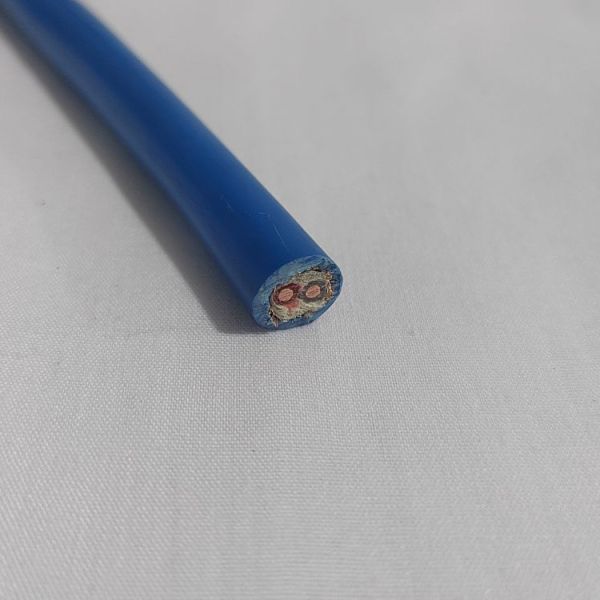

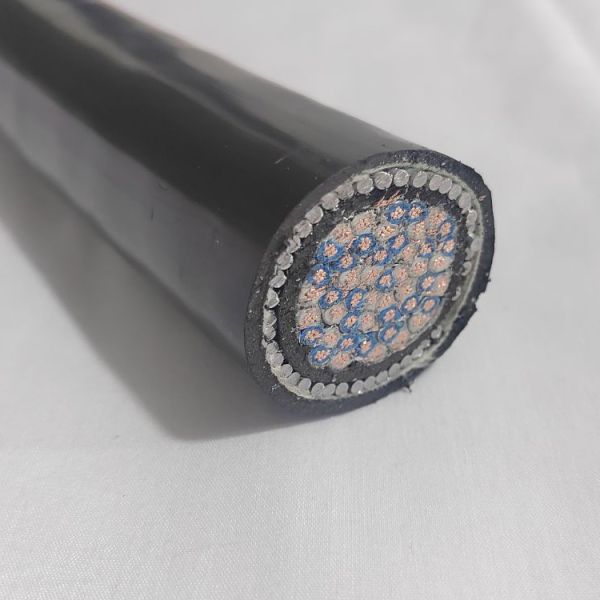

Product Images

Multipair Shielded Instrument Cable XLPE PVC SWA Armored Cable For Industrial Control

Technical Specifications

No. of Pairs	Stranding	Dia Mom.	Insulation Thickness	Bedding Thickness	Approx. Dia. Over Bedding	Nom. Dia. of Armour Wire	Nom. Outer Sheath Thickness	Approx. Overall Dia
0.5mm² (solid)
2	1/0.8	0.5	0.9	9.7	0.9	1.4	14.3	345
5	1/0.8	0.5	12	13.0	1.25	1.5	185	610
10	1/0.8	0.5	1.2	16.9	1.25	17	22.8	870
15	1/0.8	0.5	1.3	19.7	1.5	1.7	26.3	1265
20	1/0.8	0.5	1.3	22.3	1.6	1.8	29.1	1475
30	1/0.8	0.5	1.5	27.1	1.6	1.9	34.1	1915
50	1/0.8	0.5	2.0	35.0	2.0	2.2	43.4	3075
1.0 mm² (solid)
2	1/1.13	0.6	1.1	11.9	0.9	1.5	16.7	435
5	1/1.13	0.6	1.2	15.4	1.25	1.6	21.1	755
10	1/1.13	0.6	1.3	20.5	1.6	1.8	27.3	1300
15	1/1.13	0.6	1.5	24.1	1.6	1.9	31.	1665
20	1/1.13	0.6	1.7	27.7	2.0	2.0	35.7	2240
30	1/1.13	0.6	2.0	33.7	2.0	2.2	42.1	2950
50	1/1.13	0.6	2.2	42.5	2.5	2.5	52.5	4639
0.5 mm² (flexible)
2	16/0.2	0.6	1	11.2	0.9	1.5	16.0	400
5	16/0.2	0.6	1.2	14.5	1.25	1.6	20.2	680
10	16/0.2	0.6	1.3	19.3	1.6	1.8	26.1	1175
15	16/0.2	0.6	1.5	22.5	1.6	1.8	29.4	1420
20	16/0.2	0.6	1.5	25.7	1.6	19	327	1680
30	16/0.2	0.6	1.7	31.0	2.0	2.1	39.2	2415
50	16/0.2	0.6	2.2	39.9	2.5	2.4	48.7	3940
0.75mm² (flexible)
2	24/0.2	0.6	1.1	12.1	0.9	1.5	16.9	437
5	24/0.2	0.6	12	15.r	1.25	1.6	21.4	755
10	24/0.2	0.6	1.3	20.9	1.6	17	27.5	1291
15	24/0.2	0.6	1.5	24.6	1.6	1.9	31.6	1680
20	24/0.2	0.6	1.5	27.9	1.6	19	34.9	2202
30	24/0.2	0.6	2.0	34.4	2.0	2.2	42.8	2880
50	24/0.2	0.6	2.2	43.5	2.5	2.5	53.5	4406
1.5mm² (stranded)
2	7/0.52	0.6	1.2	13.6	1.25	1.6	19.3	635
5	7/0.52	0.6	1.3	17.7	1.6	1.7	24.3	1070
10	7/0.52	0.6	1.5	23.9	1.6	19	30.9	1605
15	7/0.52	0.6	1.7	28.0	2.0	2.0	36.0	2280
20	7/0.52	0.6	1.7		2.0	2.1	39.9	2730
30	7/0.52	0.6	2.0	38.6	2.5	2.5	48.5	4075
50	7/0.52	0.6	2.2	48.9	2.5	2.7	59.3	5765
